vast.rehab

FUNCTIONAL TRAINING WITH VIRTUAL REALITY

German Engineering since 1988

VAST.REHAB OVERVIEW

Schedule

Add segment Preview settings Add tasks to Add minute Subtract minute Remove segment segment

...

2> s

< 2> s <

100%

< >

< > < >

90s < 180> o 90s

Player speed Time between objects Time to react

Angle

< >

< 180> o

Difficulty

1/3

Active positions Duration

Difficulty

1/4

Duration Angle

< >

Edit workout

Workout

0min(s) 20min(s)

~2.67 loop(s)

0min(s) 20+min(s)

Crystals Vampires

Range of motion Functional movements

No>

Math

Problem solving

Difficult

Duration

< >

90s

Allow negative numbe

100%

< >

Speed of objects

4 150%

< > < >

Sorter

Divided attention

< >

Difficulty

1/3

Duration Range

< > < >

90s

Number of objects Gap size

THERAPIST PANEL

Range of moion

Functional movements

Problem solving

Dual tasking including the upper limbs for a full body workout on a treadmill

Divided attention

20% 80%

Create specific trainings in the VAST.Rehab software

Huge task generator with many variations of games,

YouTube

A short video clip using the VAST.Rehab system on the quasar® med treadmill at a therapy centre. Equipped with the safety arch and speedplate it is a great device for return to sports training.

The video is featuring many games with a wide variety of movements. This is also possible with simultaneous perturbation events.

choices for body regions to address, as well as time and difficulty.

VAST.Rehab is a revolutionary training solution for h/p/cosmos treadmills. This innovative technology fuses training, rehabilitation, virtual reality and serious gaming, transforming treadmill workouts into active and diverting dual tasking sessions with engaging experiences.

With VAST.Rehab, treadmill training is no longer a tiring routine but a dynamic and exciting journey that stimulates the play instinct.

VAST.Rehab - Functional training with virtual reality

VAST.Rehab allows virtual reality experiences during standing, walking or running on a treadmill. The subject’s body will be tracked by a camera while being on the treadmill. As a dual tasking exercise besides walking, the subject needs to fulfil different tasks, involving the upper limbs, body posture or the position on the treadmill.

The VAST.Rehab interfaces

The VAST.Rehab software platform consists of a therapist and a patient panel. Both platforms can be run on the same PC or in case of multiple patient stations on dedicated PCs. The therapist panel allows to create and manage patients. Afterwards the therapist assigns the available selection of trainings as well as personalized training targets. The software also includes features for evaluation, feedback and documentation.

The patient panel is the gamificated part of the system right in front of the treadmill on a big TV screen, displaying the patient’s games and results.

State of the art gamification

Chose from more than 30 interactive games focusing on varying cognitive and motor tasks. The subject is tracked via a special camera and represented live as an avatar to fulfil motion-activated solutions, such as:

Change the position on the running deck (left – right) in order to race an ambulance car through the busy streets of a town

Fold your hands and navigate a spaceship to avoid obstacles

Throw a ball and hit the tins

Swing your arms like you were holding a sword to hit funny vampires

Position your arms like a clock to block balls with a stick

page: 2 cos01-en-vas

BENEFITS FOR THERAPY

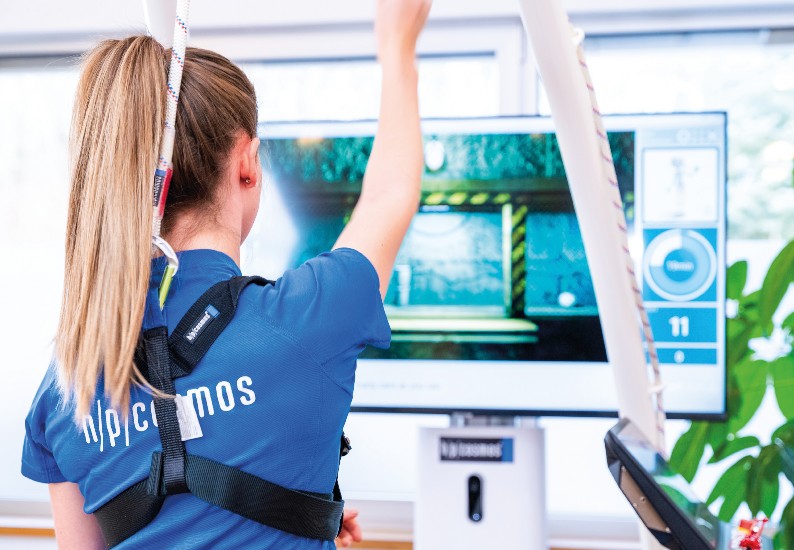

Example task: swing a sword and defend yourself

against vampires

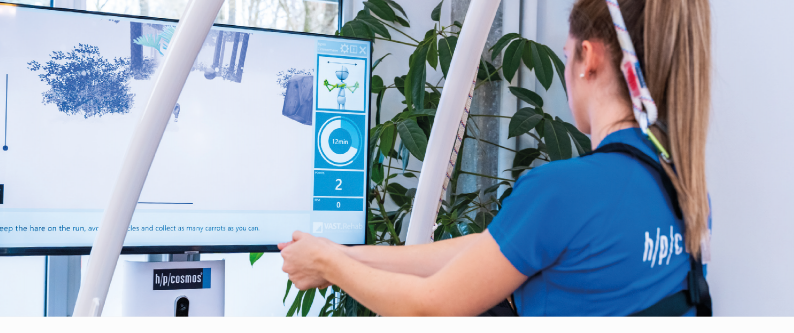

Example task: steer the spaceship via your

upper body movement

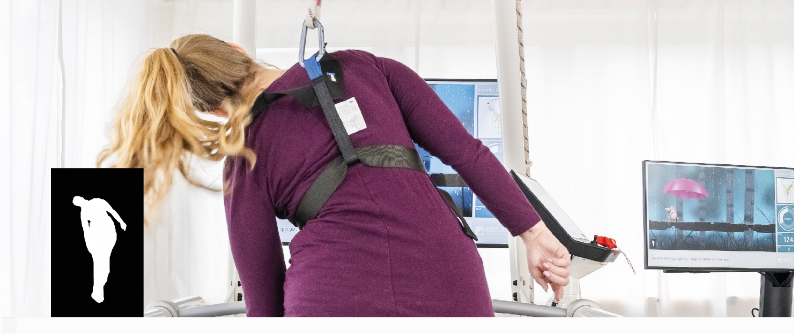

Example task: balance balls into their targets with your arms

VAST.Rehab uses a wide variety of therapeutic tasks to enable training in all rehabilitation domains:

Musculoskeletal Range of motion Strength Endurance

Fitness and cardiovascular training

Neurological

Movement quality (gross and fine motor skills)

Movement awareness and proprioception

Bilateral movements in response to bilateral stimulation

Balance and Equilibrium

Trunk and postural control Anticipatory postural responses

Adequate reactions to stimuli and distractors placed in preplanned or random positions

Technical specifications - What do you need for VAST.Rehab?

h/p/cosmos treadmill with UserTerminal Touch Pro incl. coscom® v4 (via Ethernet) High resolution camera for body detection

Optionally needed to measure and transmit step frequency:

speed sensor (cos101000_brake_as) and FTMS interface (cos101000_FTMS) State of the art PC system, recommended: h/p/cosmos satellite PC (cos14970-03) TV (e.g. cos102397) and TV stand (e.g. cos101624) or wall mount

Minimum system requirements for VAST.Rehab Windows 10 | Intel i3 CPU or better | 8 GB RAM 2 PC monitors

Available USB, Ethernet and Bluetooth® interface

Utilization of Touch screen is possible

page: 3 cos01-en-vas

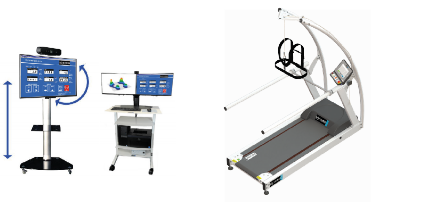

RECOMMENDED CONFIGURATION MERCURY® MED: FUNCTIONAL TRAINING WITH VIRTUAL REALITY

pos.	qty.	order number	product description
1.	1	cos31042	h/p/cosmos treadmill mercury® med - running surface 150 x 50 cm, speed range 0 ... 22 km/h, elevation 0 ... 25 %, UserTerminal Touch with keyboard and touch display, integrated interface and coscom® v4 protocol
2.	1	cos101000_touch_pro	Upgrade UserTerminal TouchPro, Upgrade of the UserTerminal Touch Basic to UserTerminal TouchPro for professional applications and special features
3.		cos102918-01	Handrails long, straight for pluto® and mercury® models with running surface 150 x 50 cm
4.	1	cos10079-01va01	Safety arch 50 with harness & chest belt / stop function, fall protection for all applications (mandatory for high risk applications); running surface 50 cm wide
5.	1	cos104823	VAST.Rehab system software including licence and dongle
6.	1	cos104823_cam	Camera including mounting kit
7.	1	cos14970-03	h/p/cosmos satellite PC med DELL PC, 2x 24“ LCD Monitor, COL Laser printer, potential isolation transformer, h/p/cosmos PC-rack with 4 casters
8.	1	cos102397	Monitor TV 50‘‘ (with a small monitor stand for table)
9.	1	cos101624	Monitor stand mobile for TV 32-60‘‘ monitor stand (without monitor!) for additional TV / monitor (max. load: 30 kg), height: 180 cm.
10.	3	cos60098010002	Labour costs per hour for service engineer
11.	1	cos102522-01va07	Packing treadmill 150/50 (SA), packed part assembled in a wooden box, incl. safety arch (L: 274 cm / W: 122 cm / H: 163 cm)
12.	1	cos60098010021	Transport / shipping charge (please specify if truck, sea or air freight; for overseas sea shipment is recommended)
13.	1	cos10194	Installation, commissioning and instruction through authorised and trained personnel

All technical data, descriptions, equipment variants and illustrations of devices, options and accessories are non-binding, in particular do not represent warranted characteristics and can deviate from offer and delivery. The Bluetooth®, Windows®,, NFC and further word marks and logos are registered trademarks. All word marks, logos and trademarks are the property of their respective owners.

E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
