torqualizer® series
sports, diagnostics, medical and rehabilitation ergometer series
ahead of time®
reliable ergometers made in germany
German Engineering since 1988

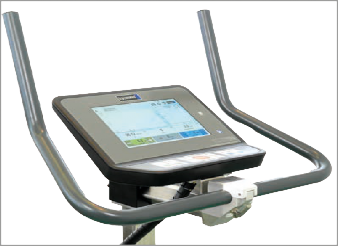

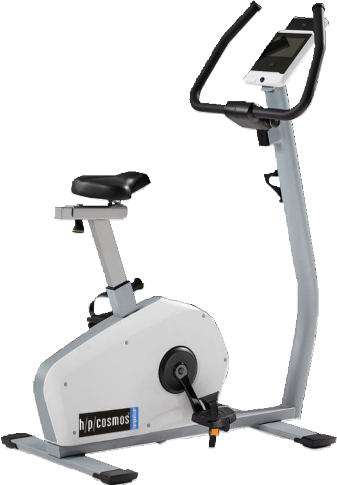

torqualizer® cycle ef med 900 with 7“ TFT touch display

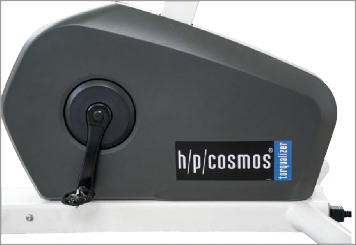

stainless steel length adjustable cranks [cos30021ef-acr] for an easy and tool-free adaption of the ergometer available at extra charge

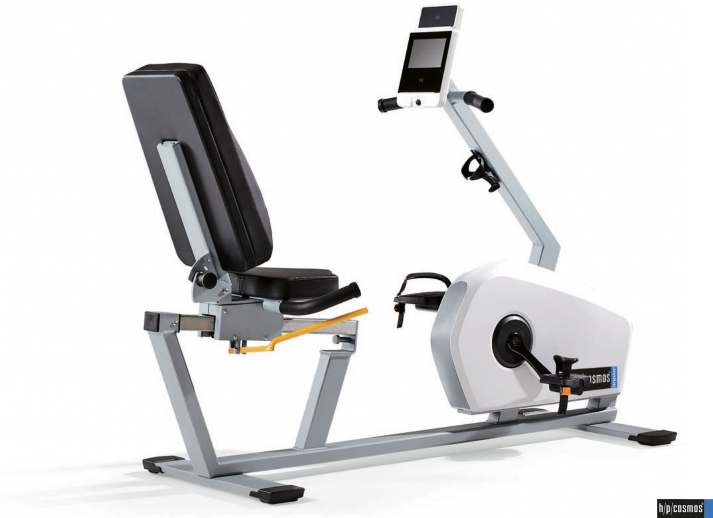

horizontal seat adjustment allows a perfect adjustment of the recumbent ergometer to the individual needs for small and tall patients
Benefit from our experience since 1988 in building and servicing standard and customized solutions around the globe.
h/p/cosmos standard
h/p/cosmos has been developing and building treadmills since 1988 in Germany for various fields including fitness, competitive sports, sports medicine, orthopaedic and neurological rehabilitation, sport science, biomechanics, uniformed services, performance diagnostics, cardiopulmonary diagnostics and rehabilitation. This experience, maximum standards in quality and advanced technology are the foundation of our business and reflect in every h/p/cosmos product.
The torqualizer® series with the latest emotion-fitness 900 UserTerminal is the perfect addition to the existing portfolio of treadmills to support therapists and trainers with a matching series of reliable ergometers for professional use. Correspondingly, all components are manufactured in best quality, jointly creating reliable and durable ergometers. The outstanding level of h/p/cosmos products and services as well as attractive prices form the h/p/cosmos standard.
The perfect match for your cardio circle
To allow a seamless look and feel as well as a perfect integration of h/p/cosmos treadmills into a torqualizer® cardio circle, the pluto® ef med treadmill is equipped with the same emotion-fitness 900 UserTerminal as the torqualizer® ergometer series.
Your advantages
All torqualizer® 900 ergometers can be ordered according to the planned application either as sports or medical devices (MDD 93/42/EEC certified with CE labeling) and the treadmill pluto® ef med 900 will be released already with the new certification MDR (EU) 2017/745.
With a keen eye on therapeutic demands, a very low step through allows easy access to the ergometers for patients with limited mobility. The 7“ TFT touch display with biofeedback indications is easy to handle, clearly readable and grid independent (except for treadmills or when ordering 24 Volt permanent power supply option).
Customer-specific configuration for individual solutions
Ergometers off the peg can be many, at h/p/cosmos you can also get your individualized
torqualizer® ergometer with a large selection of options and accessories.
Various options and preconfigured packages allow you to customize your ergometer for your planned applications.
With each product of the torqualizer® 900 series, a basic package with three programmes comes pre-installed on your terminal. The quickstart functionality lets you immediately start with manual adjustments according to your needs.
The time-programme finishes your training after a certain, predefined time.
The pulse programme lets you put in your target pulse/heart rate to be reached within your training session. Until this pulse is reached, the training difficulty advances.
Programme package additionally includes:
Programmes: Watt sensitive, Isokinetic*, Therapy, Interval, K-Cal, Hills, Distance
Tests for torqualizer® cycle ef (med) 900:
IPN, PWC, Astrand, Standard Test, Lactate, Conconi 50, Conconi 100
Systems for torqualizer® cycle ef (med) 900, recumbent ef (med) 900 & cross ef (med) 900: motion balance system, Serious Games (Slalom, Freeway, Balance)
*not available for torqualizer® stair
Connect package includes
NFC
RFID, NFC connectivity - easy nearfield access for different devices
Simple connection with compatible mobile devices Bluetooth® Low Energy connection
Barcode identification for easy scan & connect
Performance package includes
Max
Min
Charging with wireless Qi-inductive technology for many compatible smart devices Higher maximum power for extensive training
Reduced initial load of 7 watts (cycle, recumbent, body) or 15 watts (cross)
when using an external power supply
All-in package includes Programme package Connect package Performance package
program / test | standard package | programme package for torqualizer® 900 series | |
quick | |||
time | |||
pulse | |||
watt sensitive | pluto ef (med) 900 arm ef (med) 900 arm ef (med) 900-wm stair ef (med) 900 | ||
isokinetic* | |||
therapy | cross ef (med) 900 recumbent ef (med) 900 | ||
interval | |||
K-Cal | |||
Hills | |||
Distance | cycle ef (med) 900 | ||
Motion balance system | |||
Serious Games | |||
IPN | |||
PWC | |||
Astrand | |||
Standard | |||
Lactate | |||
Conconi 50 | |||
Conconi 100 | |||
*not available for torqualizer® stair
Overview of the torqualizer® series:
| bike-ergometer | torqualizer® cycle ef med 900 torqualizer® cycle ef 900 |
order number | cos30021ef-med900 cos30021ef-900 | |
applications | endurance training cycling | |
functions | 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback, low step through / easy access, horizontally and vertically adjustable saddle, hybrid POLAR® pulse receiver, optional Bluetooth®, NFC, RFID, optional inductive charging for mobile devices | |
power range* | standard: 15 (med) / 25 (sport) … 500 watts rpm independent (up to 1,000 watts rpm dependent) optional: 15 (med) / 25 (sport) … 950 watts rpm independent (up to 1,000 watts rpm dependent) |
| recumbent-ergometer | torqualizer® recumbent ef med 900 | torqualizer® recumbent ef 900 |
order number | cos30031ef-med900 | cos30031ef-900 | |
applications | endurance training legs / obese trainees / long training sessions | ||
functions | 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback, low step through easy access; horizontal seat adjustment, adjustable backrest, hybrid POLAR® pulse receiver, optional Bluetooth®, NFC, RFID, optional inductive charging for mobile devices | ||
power range* | standard: 15 (med) / 25 (sport) … 500 watts rpm independent (up to 1000 watts rpm dependent) optional: 15 (med) / 25 (sport) … 950 watts rpm independent (up to 1000 watts rpm dependent) | ||

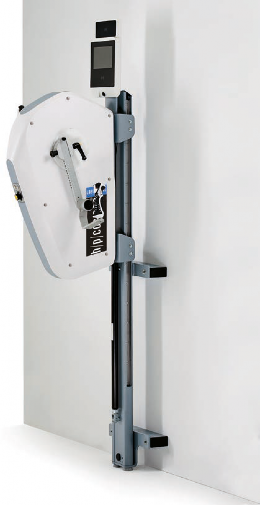

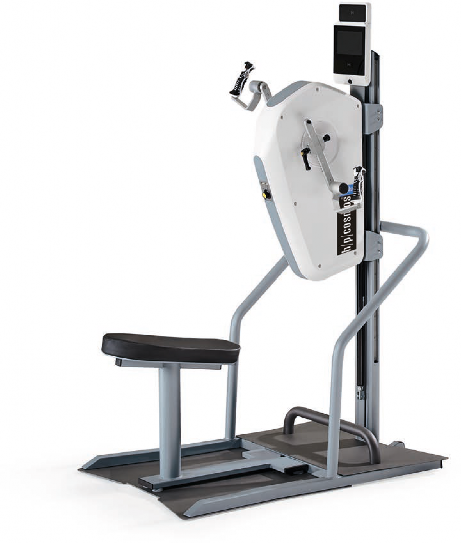

| arm-ergometer | torqualizer® arm ef med 900 | torqualizer® arm ef 900 |
order number | cos30030ef-med900 | cos30030ef-900 | |
applications | endurance training, mobilisation & stabilisation of upper body / arms | ||
functions | 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback, gas pressure supported height adjustment of the drive unit, length-adjustable crank arms, synchronous & asynchronous mode, long seat for optimal positioning, easy dismantling of the seat for wheelchair access, rpm dependent and independent mode, hybrid POLAR® pulse receiver, optional Bluetooth®, NFC, RFID, optional inductive charging for mobile devices | ||
power range* | standard: 15 (med) / 25 (sport) … 500 watts rpm independent (up to 1,000 watts rpm dependent) optional: 15 (med) / 25 (sport) … 950 watts rpm independent (up to 1,000 watts rpm dependent) | ||

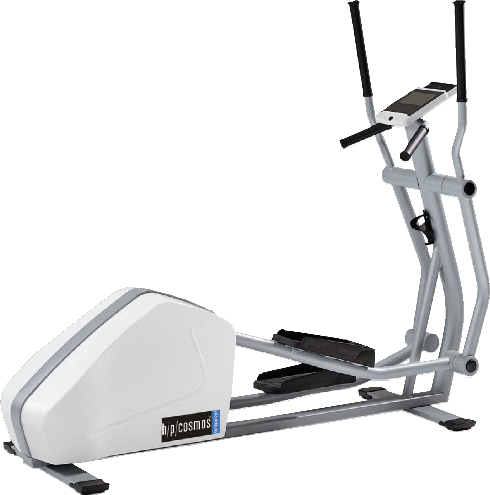

| cross-ergometer | torqualizer® cross ef med 900 | torqualizer® cross ef 900 |
order number | cos30032ef-med900 | cos30032ef-900 | |
applications | full body endurance training, easy on the joints | ||
functions | 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback forwards and backwards movement, hybrid POLAR® pulse receiver, rpm limit adjustable for extra safety, optional Bluetooth®, NFC, RFID, inductive charging for mobile devices | ||
power range* | standard: 100 … 500 watts rpm independent (up to 1,000 watts rpm dependent) optional: 100 … 950 watts rpm independent (up to 1,000 watts rpm dependent) | ||

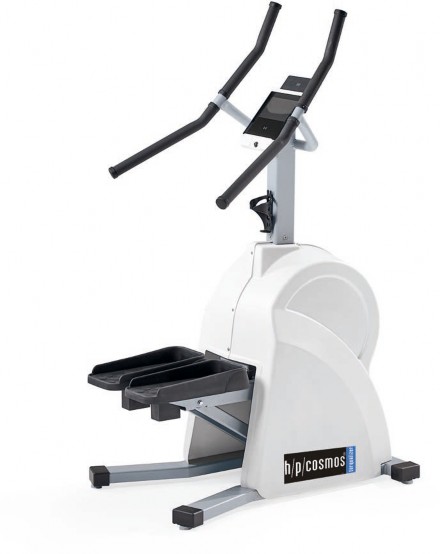

| stair-ergometer | torqualizer® stair ef med 900 torqualizer® stair ef 900 |
order number | cos30033ef-med900 cos30033ef-900 | |
applications | endurance training legs / coordination / activity of daily life (ADL) | |
functions | 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback, POLAR® auto connection system (Bluetooth® Low Energy & 5kHz), pedal independent system, cushioned pedal suspension, automatic weight detection for precise calculation of performance, optional Bluetooth®, NFC, RFID, optional inductive charging for mobile devices |
treadmill | pluto® ef med 900 | pluto® ef 900 | |
order number | cos31012 | cos31011 | |
applications | endurance training walking and running, stress device for performance testing, gait analysis and gait training | endurance training walking and running | |
functions | 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback, POLAR® auto connection system (Bluetooth® Low Energy & 5kHz), optional Bluetooth®, NFC, RFID, optional inductive charging for mobile devices | ||
*Power range of all medical torqualizers®: 15 ... 500 watts rpm independent (cross ef med: 100 ... 500 watts rpm independent); 7 watts minimum resistance if the optional 24 Volt permanent power supply option is used, 15 (med) / 25 (sport) ... 950 watts independent (cross ef med 100 ... 950 Watt rpm independent) with performance package (optional 1000 watt rpm dependent at extra charge)
configuration torqualizer® ef med 900: therapy basic
recommended configuration therapy basic torqualizer® ef med 900
pos. | qty. | order number | product description |
1. | 1 | cos30021ef-med900 | torqualizer® cycle ef med 900 hybrid brake system with 15 ... 500 watts, 15 ... 140 rpm, max. user weight 150kg 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback |
2. | 1 | cos30021ef-pro | Programme package for series 900 - Plus 7 programs, IPN Test, plus 5 additional tests, full range of functions on motion balance system and serious games |
3. | 1 | cos30021-B-EF-AL-188 | Packing torqualizer® for bicycle ef (med) 900, (L: 125 cm / W: 85 cm / H: 170 cm) packed fully assembled on pallet with metal frame and cardboard hood for bicycle-ergometer |
4. | 1 | cos104392 | transport / shipping charge (please specify if truck, sea or air freight; for overseas, sea shipment is recommended) |
5. | 1 | cos15732-os | installation, commissioning and instruction through authorized and trained personnel |
configuration torqualizer® ef med 900: cardiac testing and training
recommended configuration cardiac testing and training torqualizer® ef med 900
pos. | qty. | order number | product description |
1. | 1 | cos30021ef-med900 | torqualizer® cycle ef med 900 hybrid brake system with 15 ... 500 watts, 15 ... 140 rpm, max. user weight 150kg 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback |
2. | 1 | cos30021ef-per | All-in Package (includes Performance package with extended max. workload - 950 watts, Programme Package & Connect Package) |
3. | 1 | cos30021ef-900-epc | Power supply for power connection - Power supply 24 Volt |
4. | 1 | cos30021-B-EF-AL-188 | Packing torqualizer® for bicycle ef (med) 900, (L: 125 cm / W: 85 cm / H: 170 cm) packed fully assembled on pallet with metal frame and cardboard hood for bicycle-ergometer |
5. | 1 | cos104392 | transport / shipping charge (please specify if truck, sea or air freight; for overseas, sea shipment is recommended) |
6. | 1 | cos15732-os | installation, commissioning and instruction through authorized and trained personnel |
configuration torqualizer® recumbent ef med 900: therapy basic
recommended configuration therapy basic torqualizer® recumbent ef med 900
pos. | qty. | order number | product description |
1. | 1 | cos30031ef-med900 | torqualizer® recumbent ef med 900 hybrid brake system with 15 ... 500 watts, 20 ... 120 rpm, max. user weight 150kg 7“ TFT - capacitive multicolor touch display, high resolution, biofeedback |
2. | 1 | cos30021ef-pro | Programme package for medical devices - Plus 7 programmes, IPN Test, plus 5 additional tests, full range of functions on motion balance system and serious games |
3. | 1 | cos30031-B-EF-AL-189 | Packing torqualizer® for recumbent ef (med) 900, (L: 217 cm / W: 79 cm / H: 155 cm) packed fully assembled on pallet with metal frame and cardboard hood for bicycle-ergometer |
4. | 1 | cos104392 | transport / shipping charge (please specify if truck, sea or air freight; for overseas, sea shipment is recommended) |
5. | 1 | cos15732-os | installation, commissioning and instruction through authorized and trained personnel |

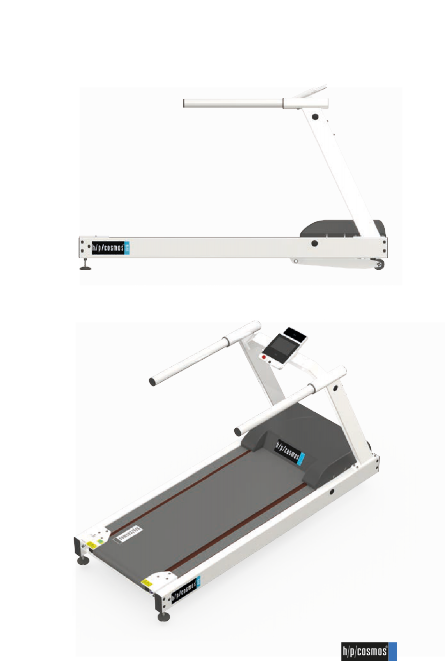

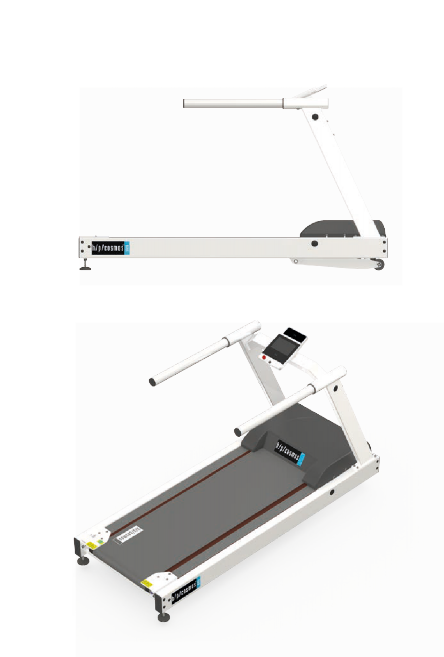

configuration pluto® ef med: rehabilitation and diagnostics
To allow a seamless look and feel for therapists and patients as well as a perfect integration of h/p/cosmos treadmills into a torqualizer®
cardio circle, the pluto® ef med treadmill is equipped with the same user terminal as the torqualizer® series. The specific terminal must be originally equipped and cannot be retrofitted to existing pluto® treadmills.
2
1
recommended configuration rehabilitation and diagnostics pluto® ef med
Many further h/p/cosmos accessories (e.g. different handrails, safety or unweighting systems) can be retrofitted.
pos. | qty. | order number | product description |
1. | 1 | cos31012 | pluto® ef med running surface 150 x 50 cm, speed range 0 ... 22 km/h, elevation 0 ... 25 %, max. user weight 250 kg (optional up to 300 kg available) 7“ TFT - capacitive multicolor touch display, high resolution |
2. | 1 | cos10079-01va01 | Safety arch 50 with harness & chest belt / stop function, fall protection for all applications (mandatory for high risk applications); running surface 50 cm wide |
3. | 1 | cos102522va03 | Packing treadmill 150/50 (SA), packed part assembled on pallet with cardboard hood, incl. safety arch (L: 274 cm / W: 122 cm / H: 94 cm) |
4. | 1 | cos104392 | transport / shipping charge (please specify if truck, sea or air freight; for overseas sea shipment is recommended) |
5. | 1 | cos15732-os | installation, commissioning and instruction through authorized and trained personnel |
Our recommended upgrades for pluto® ef med:
adjustable handrails [cos102010va05] allow an easy, fast and tool-free
adaption of the handrail height and width
standard maximum user weight of 250 kg
can optionally be upgraded to 300 kg max. user weight
the optional connect package [cos30021ef-con] allows wireless
(RFID, NFC, Bluetooth, Barcode) transmission
of training data to compatible PC software

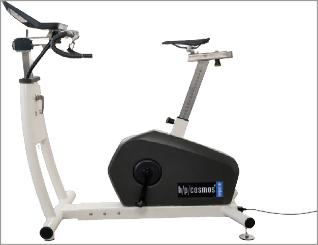

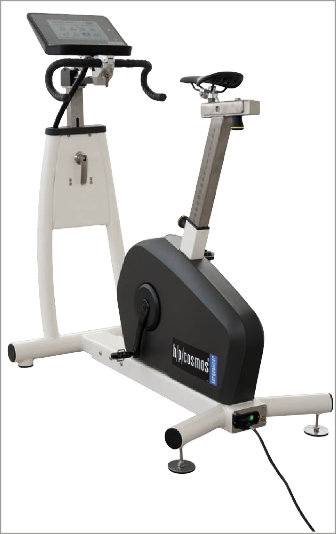

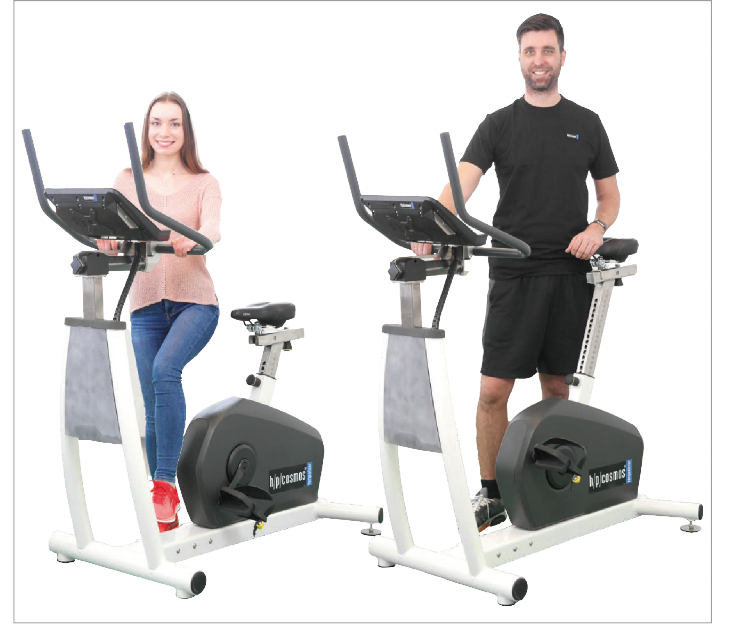

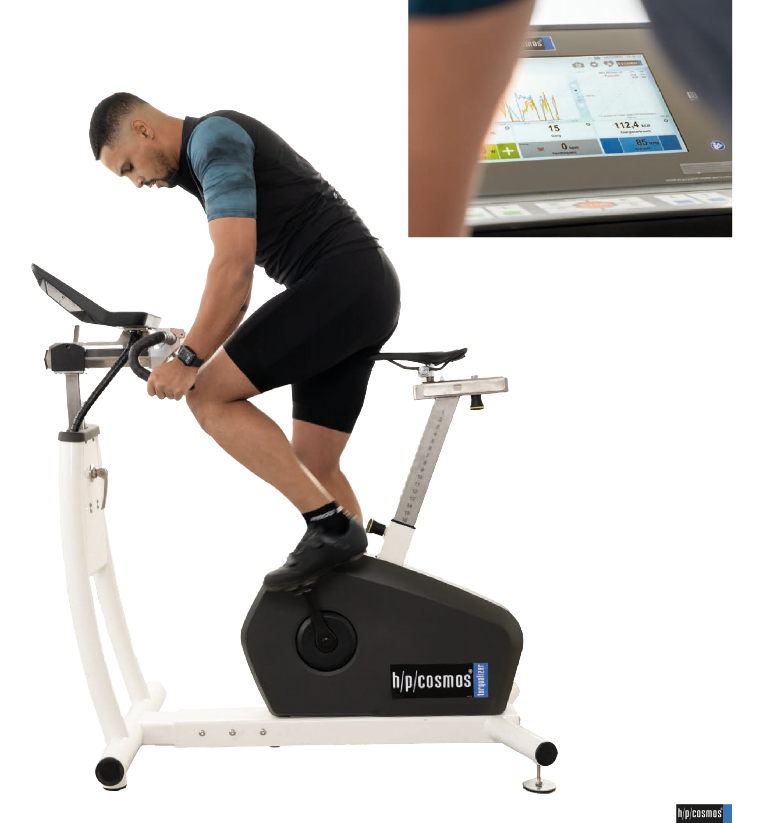

torqualizer® 1200
Ergometer for endurance training and cycling. Stress device for performance testing with up to 950 watts resistance.
The torqualizer® 1200 ergometer is a brand new development by h/p/cosmos based on proven technologies and designs in combination with modern
features. A clear focus on ergonomy, market requirements and state of the art technology has driven the development.
With our long history and experience in the development and manufacturing of treadmills, it was time to extend our position as realiable supplier for training and medical testing devices to the field of bike ergometers. The torqualizer® 1200 comes with the well-established MCU6 UserTerminal, granting a similar design, look & feel and related features known from the h/p/cosmos MCU6 treadmill series pluto®, mercury®, quasar® and pulsar®. Among the key features of the torqualizer series are the rigid construction, the fully adjustable frame including adjustable step through and of course the interface known from the current generation of treadmills that includes graphic display of heart rate variability via Poincaré diagram.
The torqualizer® 1200 (med) are currently in the latest stages of development, testing and certification and will be launched to the market approx. in early 2025.
page: 7 cos01-en-tor-01
torqualizer® 1200
Ergometer for endurance training and cycling. Stress device for performance testing with up to 950 watts resistance.

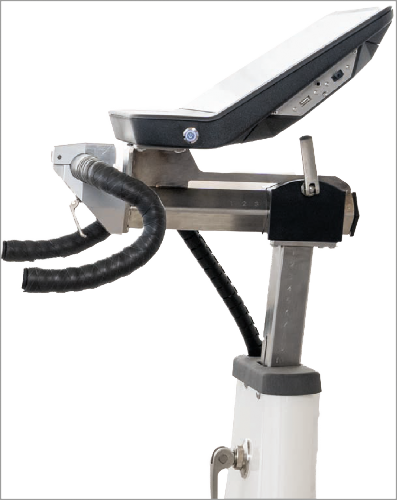

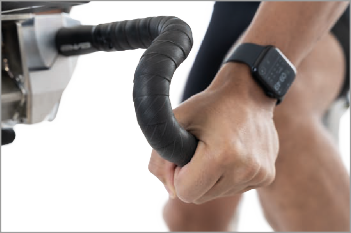

exchangeable handlebars and adjustable handlebar position

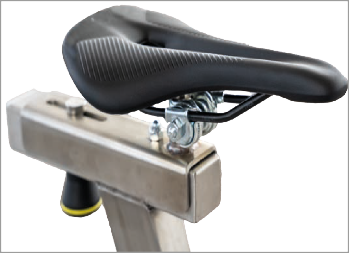

Adjustable saddle posts and handlebars for maximum flexibility and individualization for therapeutic and athletic applications Gridless horizontal saddle adjustment with conveniently changeable saddle for sports [cos104528] or therapy

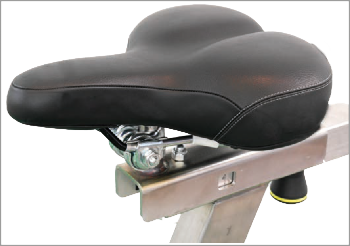

For therapeutic applications, a specially designed saddle and handlebar [cos104071va01] are available for comfortable and upright sitting.
Height and width adjustments of frame, saddle and handlebar provide flexibility for a maximum versatility for small and tall athletes or patients.
deep step through and rigid frame construction Q-factor of 0.9 allows (depending on pedals mounted) ergonomic cycling for athletes and patients
(certification pending / Product launch planned for 2025)
(certification pending / Product launch planned for 2025)
bike-ergometer | torqualizer® 1200 med | torqualizer® 1200 sport |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos30021va02 | cos30021va01 |
applications: | endurance training cycling, stress device for performance testing | endurance training cycling |
functions: | easy to handle, 10.1“ LCD touch display, high resolution coloured display with Bio-Feedback; easy step-through, horizontally and vertically adjustable saddle | easy to handle, 10.1“ LCD touch display, high resolution coloured display with Bio-Feedback; easy step-through horizontally and vertically adjustable saddle |
max. user weight: | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) |
voltage supply: | 230 V | 230 V |
control: | via UserTerminal with keyboard & display | via UserTerminal with keyboard & display |
power range: | 7 … 950 watts rpm independent | 7 … 950 watts rpm independent |
speed range: | 20 ... 140 rpm | 20 ... 140 rpm |
brake: | hybrid-brake-system (HBS) | hybrid-brake-system (HBS) |
safety: | c 0123; MDR (EU) 2017/745, DIN EN ISO 20957-1; DIN EN ISO 20957-5; DIN EN 60601-1; DIN EN 60601-1-2; Not UL-certified. Certification pending. Product launch planned for 2025 | c; DIN EN ISO 20957-1; DIN EN ISO 20957-5; DIN EN 60601-1-2 Not UL-certified. Certification pending. Product launch planned for 2025 |
classification: | medical device risk class IIa according to MDR, therapeutic medical device and diagnostic medical device Certification pending. Product launch planned for 2025 | sports and fitness device; not for medical, not for therapeutical applications Certification pending. Product launch planned for 2025 |
usage class: | S, I according to ISO 20957-5 | S, I according to ISO 20957-5 |
accuracy class: | A (high accuracy) according to DIN EN ISO 20957-1 | A (high accuracy) according to DIN EN ISO 20957-1 |
digital interface: | optional Bluetooth®, NFC, RFID | optional Bluetooth®, NFC, RFID |
programs: | quick start, time, pulse, optional program package available | quick start, time, pulse, optional program package available |
colour of frame: | pure white RAL 9010 (powder coated) | pure white RAL 9010 (powder coated) |
size of frame: | L x W x H: 150 x 70 x 130 cm (4ft 9.2“ x 2ft 2.9“ x 4ft 26 “) | L x W x H: 150 x 70 x 130 cm (4ft 9.2“ x 2ft 2.9“ x 4ft 26 “) |
net. weight: | device approx. 110 kg (243 Ibs) | device approx. 110 kg (243 Ibs) |
gross weight: | depending on package mode chosen (land, sea, air) | depending on package mode chosen (land, sea, air) |
Weight and dimensions may differ depending on accessories.
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
bike-ergometer | torqualizer® cycle ef med 900 | torqualizer® cycle ef 900 |
manufacturer: | emotion fitness GmbH & Co. KG / Germany | emotion fitness GmbH & Co. KG / Germany |
order number: | cos30021ef-med900 | cos30021ef-900 |
applications: | endurance training cycling, stress device for performance testing | endurance training cycling, stress device for performance testing |
functions: | 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; easy step-through; easy to handle; horizontally and vertically adjustable saddle; Polar® - auto connection system | 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; easy step-through; easy to handle; horizontally and vertically adjustable saddle; Polar® - auto connection system |
max. user weight: | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) |
voltage supply: | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option |
control: | via UserTerminal with keyboard & display | via UserTerminal with keyboard & display |
power range: | 15 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 15 … 950 watts rpm independent (up to 1,000 watts rpm dependent) at extra charge starting from 7 watts with additional external power supply | 25 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 25 … 950 watts rpm independent (up to 1,000 watts rpm dependent) at extra charge starting from 7 watts with additional external power supply |
speed range: | 15 ... 140 rpm | 15 ... 140 rpm |
brake: | hybrid-brake-system (HBS) | hybrid-brake-system (HBS) |
safety: | c 0633; MDD 93/42/EEC, Class IIa, DIN EN ISO 20957-1; DIN EN ISO 20957-5; DIN EN 60601-1; DIN EN 60601-1-2; Not UL-certified. Device not for sale in Canada and the USA. | c; DIN EN ISO 20957-1; DIN EN ISO 20957-5; Not UL-certified. Device not for sale in Canada and the USA. |
classification: | medical device risk class IIa according to MDD, therapeutic medical device and diagnostic medical device | sports and fitness device; not for medical, not for therapeutical applications |
usage class: | S, I according to ISO 20957-1 | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to DIN EN ISO 20957-1 | A (high accuracy) according to DIN EN ISO 20957-1 |
digital interface: | optional Bluetooth®, NFC, RFID | optional Bluetooth®, NFC, RFID |
programs: | quick start, time, pulse, optional program package available | quick start, time, pulse, optional program package available |
colour of frame: | white aluminum RAL 9006 (powder coated) | white aluminum RAL 9006 (powder coated) |
size of frame: | L x W x H: 119 x 65 x 145 cm (3ft 10.85“ x 2ft 1.6“ x 4ft 9“) | L x W x H: 119 x 65 x 145 cm (3ft 10.85“ x 2ft 1.6“ x 4ft 9“) |
net. weight: | device approx. 58 kg (128 Ibs) | device approx. 58 kg (128 Ibs) |
gross weight: | depending on package mode chosen (land, sea, air) | depending on package mode chosen (land, sea, air) |
Weight and dimensions may differ depending on accessories.
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
arm-ergometer | torqualizer® arm ef med 900 | torqualizer® arm ef 900 |
manufacturer: | emotion fitness GmbH & Co. KG / Germany | emotion fitness GmbH & Co. KG / Germany |
order number: | cos30030ef-med900 | cos30030ef-900 |
applications: | endurance training upper body / arms | endurance training upper body / arms |
functions: | easy to handle, 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; easy step-through, easily removable seat; length adjustable crank arm (with synchronous mode), bi-directional drive; Polar® - auto connection system | easy to handle, 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; easy step-through, easily removable seat; length adjustable crank arm (with synchronous mode), bi-directional drive; Polar® - auto connection system |
max. user weight: | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) |
voltage supply: | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option |
control: | via UserTerminal with keyboard & display | via UserTerminal with keyboard & display |
power range: | 15 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 15 … 550 watts rpm independent (up to 1,000 watts rpm dependent) at extra charge starting from 7 watts with additional external power supply | 25 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 25 … 550 watts rpm independent (up to 1,000 watts rpm dependent) at extra charge starting from 7 watts with additional external power supply |
speed range: | 15 ... 140 rpm | 15 ... 140 rpm |
brake: | hybrid-brake-system (HBS) | hybrid-brake-system (HBS) |
safety: | c 0633; MDD 93/42/ECC, Class IIa, DIN EN ISO 20957-1; DIN EN ISO 20957-5; DIN EN 60601-1; DIN EN 60601-1-2; Not UL-certified. Device not for sale in Canada and the USA. | c; DIN EN ISO 20957-1; DIN EN ISO 20957-5; Not UL-certified. Device not for sale in Canada and the USA. |
classification: | medical device risk class IIa according to MDD, therapeutic medical device and diagnostic medical device | sports and fitness device; not for medical, not for therapeutic applications |
usage class: | S, I according to ISO 20957-1 | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to DIN EN ISO 20957-1 | A (high accuracy) according to DIN EN ISO 20957-1 |
digital interface: | optional Bluetooth®, NFC, RFID | optional Bluetooth®, NFC, RFID |
programs: | quick start, time, pulse, optional program package available | quick start, time, pulse, optional program package available |
colour of frame: | white aluminum RAL 9006 (powder coated) | white aluminum RAL 9006 (powder coated) |
size of frame: | L x W x H: 116 x 77 x 155 cm (3ft 9.6“ x 2ft 6.3“ x 5ft 1“) | L x W x H: 116 x 77 x 155 cm (3ft 9.6“ x 2ft 6.3“ x 5ft 1“) |
net. weight: | device approx. 98 kg (216.1 Ibs) | device approx. 98 kg (216.1 Ibs) |
Weight and dimensions may differ depending on accessories.
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration.
Subject to our general terms of trade: www.hpcosmos.com
page: 12
bike-ergometer | torqualizer® recumbent med 900 | torqualizer® recumbent 900 |
manufacturer: | emotion fitness GmbH & Co. KG / Germany | emotion fitness GmbH & Co. KG / Germany |
order number: | cos30031ef-med900 | cos30031ef-900 |
applications: | endurance training legs, obese patients, long training session | endurance training legs, obese trainees, long training session |
functions: | 7“ TFT – capacitive touch display, high resolution coloured display, with biofeedback, easy access, horizontal seat adjustment, adjustable backrest, grid independent, Polar® - auto connection system | 7“ TFT – capacitive touch display, high resolution coloured display, with biofeedback, easy access, horizontal seat adjustment, adjustable backrest, grid independent, Polar® - auto connection system |
max. user weight: | 150 kg (330 lbs), optional 200 / 250 kg (440 / 551 lbs) available at extra charge | 150 kg (330 lbs), optional 200 / 250 kg (440 / 551 lbs) available at extra charge |
voltage supply: | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option |
control: | via UserTerminal with keyboard & display | via UserTerminal with keyboard & display |
power range: | 15 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 15 … 950 watts rpm independent (up to 1,000 watts rpm dependent) at extra charge starting from 7 watts with additional external power supply | 25 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 25 … 950 watts rpm independent (up to 1,000 watts rpm dependent) at extra charge starting from 7 watts with additional external power supply |
speed range: | 15 ... 140 rpm | 15 ... 140 rpm |
brake: | hybrid-brake-system (HBS) | hybrid-brake-system (HBS) |
safety: | c 0633; MDD 93/42/EEC, Class IIa, DIN EN ISO 20957-1; DIN EN ISO 20957-5; DIN EN 60601-1; DIN EN 60601-1-2; Not UL-certified. Device not for sale in Canada and the USA. | c; DIN EN ISO 20957-1; DIN EN ISO 20957-5; DIN EN 60601-1-2. Not UL-certified. Device not for sale in Canada and the USA. |
classification: | medical device risk class IIa according to MDD, therapeutic medical device and diagnostic medical device | sports and fitness device; not for medical, not for therapeutic applications |
usage class: | S, I according to ISO 20957-1 | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to DIN EN ISO 20957-1 | A (high accuracy) according to DIN EN ISO 20957-1 |
digital interface: | optional Bluetooth®, NFC, RFID | optional Bluetooth®, NFC, RFID |
programs: | quick start, time, pulse, optional therapy package available | quick start, time, pulse, optional therapy package available |
colour of frame: | white aluminum RAL 9006 (powder coated) | white aluminum RAL 9006 (powder coated) |
size of frame: | L x W x H: 173 x 65 x 133 cm (5ft 8.11“ x 2ft 1.59“ x 4ft 4.36“) L x W x H with boosted 250 kg: 173 x 78 x 133 cm (5ft 8.11“ x 2ft 6,7“x 4ft 4.36“) | L x W x H: 173 x 65 x 133 cm (5ft 8.11“ x 2ft 1.59“ x 4ft 4.36“) L x W x H with boosted 250 kg: 173 x 78 x 133 cm (5ft 8.11“ x 2ft 6,7“x 4ft 4.36“) |
net. weight: | device approx. 80 kg (176.4 Ibs) with boosted 250 kg: approx. 104 kg (230lbs) | device approx. 80 kg (176.4 Ibs) with boosted 250 kg: approx. 104 kg (230lbs) |
Weight and dimensions may differ depending on accessories.
page: 13 cos01-en-tor-01
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
arm-ergometer | torqualizer® arm ef med 900 wall model | torqualizer® arm ef 900 wall model |
manufacturer: | emotion fitness GmbH & Co. KG / Germany | emotion fitness GmbH & Co. KG / Germany |
order number: | cos30030ef-med900-wm | cos30030ef-900-wm |
applications: | endurance training upper body / arms | endurance training upper body / arms |
functions: | easy to handle, 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; length adjustable crank arm (with synchronous mode), bi-directional drive; Polar® - auto connection system | easy to handle, 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; length adjustable crank arm (with synchronous mode), bi-directional drive; Polar® - auto connection system |
voltage supply: | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option |
control: | via UserTerminal with keyboard & display | via UserTerminal with keyboard & display |
power range: | 15 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 15 … 550 watts rpm independent (up to 1,000 watts rpm dependent) starting from 7 watts with additional external power supply | 25 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 25 … 550 watts rpm independent (up to 1,000 watts rpm dependent) at extra charge starting from 7 watts with additional external power supply |
speed range: | 15 ... 140 rpm | 15 ... 140 rpm |
brake: | hybrid-brake-system (HBS) | hybrid-brake-system (HBS) |
safety: | c 0633; MDD 93/42/ECC, Class IIa, DIN EN ISO 20957-1; DIN EN ISO 20957-5; DIN EN 60601-1; DIN EN 60601-1-2; Not UL-certified. Device not for sale in Canada and the USA. | c; DIN EN ISO 20957-1; DIN EN ISO 20957-5; Not UL-certified. Device not for sale in Canada and the USA. |
classification: | medical device risk class IIa according to MDD, therapeutic medical device and diagnostic medical device | sports and fitness device; not for medical, not for therapeutic applications |
usage class: | S, I according to ISO 20957-1 | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to DIN EN ISO 20957-1 | A (high accuracy) according to DIN EN ISO 20957-1 |
digital interface: | optional Bluetooth®, NFC, RFID | optional Bluetooth®, NFC, RFID |
programs: | quick start, time, pulse, optional program package available | quick start, time, pulse, optional program package available |
colour of frame: | white aluminum RAL 9006 (powder coated) | white aluminum RAL 9006 (powder coated) |
size of frame: | L x W x H: 63 x 56 x 155 cm (2ft 0.8“ x 1ft 10“ x 5ft 1“) | L x W x H: 63 x 56 x 155 cm (2ft 0.8“ x 1ft 10“ x 5ft 1“) |
net. weight: | device approx. 48 kg (105.9 Ibs) | device approx. 48 kg (105.9 Ibs) |
Weight and dimensions may differ depending on accessories.
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
cross-ergometer | torqualizer® cross med 900 | torqualizer® cross 900 |
manufacturer: | emotion fitness GmbH & Co. KG / Germany | emotion fitness GmbH & Co. KG / Germany |
order number: | cos30032ef-med900 | cos30032ef-900 |
applications: | full body endurance training, easy on the joints | full body endurance training, easy on the joints |
functions: | 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; easy step-through; easy to handle; horizontally and vertically adjustable saddle; Polar® - auto connection system | 7“ TFT – capacitive touch display, high resolution coloured display with Bio-Feedback; easy step-through; easy to handle; horizontally and vertically adjustable saddle; Polar® - auto connection system |
max. user weight: | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) | 150 kg / 330 lbs (optional 200 kg / 440 lbs available at extra charge) |
voltage supply: | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option |
control: | via UserTerminal with keyboard & display | via UserTerminal with keyboard & display |
power range: | 100 … 500 watts rpm independent (up to1,000 watts rpm dependent) 100 … 950 watts rpm independent with performance package starting from 7 watts with additional external power supply optional display of brake wattage with 15 watts initial break resistance; | 100 … 500 watts rpm independent (up to 1,000 watts rpm dependent) 100 … 950 watts rpm independent with performance package starting from 7 watts with additional external power supply optional display of brake wattage with 15 watts initial break resistance; |
speed range: | 15 ... 140 rpm | 15 ... 140 rpm |
brake: | hybrid-brake-system (HBS) | hybrid-brake-system (HBS) |
safety: | c 0633; MDD 93/42/ECC, Class IIa, DIN EN ISO 20957-1; DIN EN ISO 20957-9; DIN EN 60601-1; DIN EN 60601-1-2; Not UL-certified. Device not for sale in Canada and the USA. | c; DIN EN ISO 20957-1; DIN EN ISO 20957-9; Not UL-certified. Device not for sale in Canada and the USA. |
classification: | medical device risk class IIa according to 93/42 EEC, therapeutic medical device and diagnostic medical device | sports and fitness device; not for medical, not for therapeutic applications |
usage class: | S, I according to ISO 20957-1 | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to DIN EN ISO 20957-1 | A (high accuracy) according to DIN EN ISO 20957-1 |
digital interface: | optional Bluetooth®, NFC, RFID | optional Bluetooth®, NFC, RFID |
programs: | quick start, time, heart rate, optional therapy package available | quick start, watts, heart rate, optional comfort package available |
colour of frame: | white aluminum RAL 9006 (powder coated) | white aluminum RAL 9006 (powder coated) |
size of frame: | L x W x H: 200 x 65 x 169 cm (6ft 6.7“ x 2ft 1.5“ x 5ft 6.5“) | L x W x H: 200 x 65 x 169 cm (6ft 6.7“ x 2ft 1.5“ x 5ft 6.5“) |
net. weight: | device approx. 101 kg (223 Ibs) | device approx. 101 kg (223 Ibs) |
Weight and dimensions may differ depending on accessories.
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration.
Subject to our general terms of trade: www.hpcosmos.com
page: 15
cos01-en-tor-01
stair-ergometer | torqualizer® stair ef med 900 | torqualizer® stair ef 900 |
manufacturer: | emotion fitness GmbH & Co. KG / Germany | emotion fitness GmbH & Co. KG / Germany |
order number: | cos30033ef-med900 | cos30033ef-900 |
applications: | endurance training legs, coordination, activity of daily life (ADL) | endurance training legs, coordination, activity of daily life (ADL) |
functions: | 7“ TFT – capacitive touch display, high resolution coloured display with biofeedback, Polar® - auto connection system, pedal independent system, cushioned pedal suspension, automatic weight detection for precise calculation of performance | 7“ TFT – capacitive touch display, high resolution coloured display with biofeedback, Polar® - auto connection system, pedal independent system, cushioned pedal suspension, automatic weight detection for precise calculation of performance |
max. user weight: | 150 kg | 150 kg |
voltage supply: | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option | torqualizer® ergometer is grid independent, except when ordering 24 Volt permament power supply option |
control: | via UserTerminal with keyboard & display | via UserTerminal with keyboard & display |
power range: | Isokinetic mode of operation for 4 ... 27 m / min falling speed | Isokinetic mode of operation for 4 ... 27 m / min falling speed |
brake: | hybrid-brake-system (HBS) | hybrid-brake-system (HBS) |
motor system: | calibrated drive unit | calibrated drive unit |
safety: | c 0633; MDD 93/42/ECC, Class IIa, DIN EN ISO 20957-1; DIN EN ISO 20957-8; DIN EN 60601-1; DIN EN 60601-1-2; Not UL-certified. Device not for sale in Canada and the USA. | c; DIN EN ISO 20957-1; DIN EN ISO 20957-8; Not UL-certified. Device not for sale in Canada and the USA. |
classification: | medical device risk class IIa according to MDD, therapeutic medical device and diagnostic medical device | sports and fitness device; not for medical, not for therapeutic applications |
usage class: | S, I according to ISO 20957-1 | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to DIN EN ISO 20957-1 | A (high accuracy) according to DIN EN ISO 20957-1 |
digital interface: | optional Bluetooth®, NFC, RFID | optional Bluetooth®, NFC, RFID |
programs: | quick start, time, pulse, optional program package available | quick start, watts, heart rate, optional program package available |
colour of frame: | white aluminum RAL 9006 (powder coated) | white aluminum RAL 9006 (powder coated) |
size of frame: | L x W x H: 102 x 73 x 160 cm (3ft 4.1“ x 2ft 4.7“ x 5ft 3“) | L x W x H: 102 x 73 x 160 cm (3ft 4.1“ x 2ft 4.7“ x 5ft 3“) |
net. weight: | device approx. 79 kg (175 Ibs) | device approx. 79 kg (175 Ibs) |
Weight and dimensions may differ depending on accessories.
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
treadmill | pluto® ef med |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos31012 |
applications: | endurance training walking and running stress device for performance testing, gait analysis and gait training |
control: | UserTerminal with easy-to-use 7“ TFT – capacitive touch display, via integrated interface coscom® v4 |
running surface: | L x W: 150 x 50 cm (4‘ 11.1“ x 1‘ 7.6‘‘) access height: 23 cm (9.1“)
|
speed range: | 0.0 ... 22.0 km/h (0.0 ... 6.1 m/s) (0.0 13.7 mph) special speed available at extra charge |
acceleration: | 1 acceleration / deceleration level |
elevation: | 0 ... 25 % (0 14.0°) motorized adjustment (-25 % +25 % when using optional reverse belt rotation) |
running direction: | reverse belt rotation at extra charge. Without fall prevention the max. speed for reverse belt rotation is limited to 5 km/h (3.1 mph) |
motor systems: | 2.2 kW (3 HP) 3-phase AC motor, maintenance free and brushless For high-performance applications we recommend models with a 3-phase 3x400 Volt power supply and a running surface min. 190/65 cm |
power transmission: | frequency inverter, poly-V-belt, very quiet operation |
safety systems: | n; medical device regulation MDR (EU) 2017/745, machinery regulation (EU) 2023/1230; IEC 60601-1; EN 60601-1-2 (EMC tested); ISO 20957-1; ISO 20957-6; EN 14971; emergency-stop mushroom push button (drives power off), emergency-stop with pull cord and clip, potential equalization bolt; transformer for potential-isolation from the mains Certification pending. Product launch planned for Q3 2024. |
degree of protection: | appliance class I M / type B R / IP 20 |
classification: | medical device risk class IIb according to MDR, active therapeutic medical device and active diagnostic medical device |
usage class: | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to ISO 20957-6 |
earth leakage current: | < 0.2 mA |
ambient condition: | +10 … +30 °C; (-30 ... + 50°C on request) 20 … 85 % humidity (up to 100% on request) 700 … 1060 hPa air pressure; 3,000 m (~10,000 ft) max. altitude without pressurization |
display (resolutions) parameter: | 7” TFT capacitive color touch display speed, time, elevation, distance, heart rate, heart rate variability |
resolution: | 1 decimal place |
units: | metric |
heart rate monitoring: | heart rate receiver included (5kHz + Bluetooth®), automatic control of speed and elevation according to programmed target heart rate („cardio mode“) |
digital interface: | via optional „connect package“; optional Bluetooth®, NFC, RFID |
programs: | Standard: Quick, Time, pulse (“cardio mode”) optional program package: watt sensitive, therapy, interval, k-cal, hills, distance |
PC software (incl.): | para control® for display & remote control |
accessory (incl.): | instruction for use on media stick, service kit, 5m LAN cable, 5m PE-cable |
colour of frame: | pure white RAL 9010 (powder coated) |
handrails: | steel tube handrails diameter 60 mm on both sides, over min. 1/3 of treadmill length, easily exchangable Other handrail designs optional at extra charge. |
voltage supply: | 200 ... 240 Volt AC 1~/N/PE 50/60 Hz 16A fuse; dedicated circuit, line and protection |
size of frame: | L x W x H: 210 cm x 86cm x 126cm (6ft 11“ x 2ft 9.9“ x 4ft 1.6“) |
mass of device: | device approx. 240 kg (530 Ibs) |
mass of packaging: | 75 ... 265 kg (165 ... 585 lbs) depending on requirement |
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration.
Subject to our general terms of trade: www.hpcosmos.com Weight and dimensions may differ depending on accessories.
Optionally available at extra charge are special frame colours, other handrail designs, special voltage supply, other options and accessories. Weight and package specifications can deviate according to options, accessories packing and way of transport. E&OE. Subject to alterations without prior notice. Please consider the natural and physical performance limitations of the single phase 230 volt power supply. The single phase 230 volt power supply is sufficient up to normal fitness or therapy applications. For all special high performance applications (speed running, controlled jump-ons, sidesteps, heavy subjects at higher speed, extreme elevations, etc.), we recommend models with a 3-phase, 3x400 volt power supply ((for example model h/p/cosmos quasar® med 3p, pulsar® 3p, venus® or saturn®).
page: 17 cos01-en-tor-01
Warning! Installation, commissioning, instruction, maintenance and repair work only to be conducted by h/p/ cosmos trained and authorized personnel. For treadmills with oversized deck (width >65cm), for children, spe- cial applications, without sufficient safety space behind the treadmill, for subjects and / or patients with health or other limitations (e.g. visual impairment, etc.), for running at high speed and / or for all individuals, where a fall triggers a dangerous risk of injury or death (e.g. newly operated hip patients, invasive probes, etc.), a fall prevention system is obligatory (e.g. safety arch with chest belt and harness or a weight support system). For more information see the instructions for use. Safety space behind the treadmill: min. L: 2 m (6ft 6.74“) x treadmill width. Children are only allowed to be on the treadmill, if under permanent supervision and secured by a fall prevention system.
treadmill | pluto® ef sport |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos31011 |
applications: | endurance training walking and running |
control: | UserTerminal with easy-to-use 7“ TFT – capacitive touch display, via integrated interface coscom® v4 |
running surface: | L x W: 150 x 50 cm (4‘ 11.1“ x 1‘ 7.6‘‘) access height: 23 cm (9.1“)
|
speed range: | 0.0 ... 22.0 km/h (0.0 ... 6.1 m/s) (0.0 13.7 mph) special speed available at extra charge |
acceleration: | 1 acceleration / deceleration level |
elevation: | 0 ... 25 % (0 14.0°) motorized adjustment (-25 % +25 % when using optional reverse belt rotation) |
running direction: | reverse belt rotation at extra charge. Without fall prevention the max. speed for reverse belt rotation is limited to 5 km/h (3.1 mph) |
motor systems: | 2.2 kW (3 HP) 3-phase AC motor, maintenance free and brushless For high-performance applications we recommend models with a 3-phase 3x400 Volt power supply and a running surface min. 190/65 cm |
power transmission: | frequency inverter, poly-V-belt, very quiet operation |
safety systems: | c; machinery regulation (EU) 2023/1230; EN 60335-1; EN 60601-1-2 (EMC tested); ISO 20957-1; ISO 20957-6; EN 14971; emergency-stop mushroom push button (drives power off) emergency stop switch (safety lanyard with actuator, pull cord and clip) Certification pending. Product launch planned for Q3 2024. |
degree of protection: | appliance class I M / IP 20 |
classification: | sports and fitness device; not for medical, not for therapeutic applications |
usage class: | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to ISO 20957-6 |
earth leakage current: | < 2.5 mA |
ambient condition: | +10 … +30 °C (-30 ... + 50°C on request) 20 … 95 % humidity, (up to 100% on request) 700 … 1060 hPa air pressure 3,000 m (~10,000 ft) max. altitude without pressurization |
display (resolutions) parameter: | 7” TFT capacitive color touch display speed, time, elevation, distance, heart rate, heart rate variability |
resolution: | 1 decimal place |
units: | metric |
heart rate monitoring: | heart rate receiver included (5kHz + Bluetooth®), automatic control of speed and elevation according to programmed target heart rate („cardio mode“) |
digital interface: | via optional „connect package“; optional Bluetooth®, NFC, RFID |
programs: | Standard: Quick, Time, pulse (“cardio mode”) optional program package: watt sensitive, therapy, interval, k-cal, hills, distance |
PC software (incl.): | para control® for display & remote control |
accessory (incl.): | instruction for use on media stick, service kit, 5m lan cable |
colour of frame: | pure white RAL 9010 (powder coated) |
handrails: | steel tube handrails diameter 60 mm on both sides, over min. 1/3 of treadmill length, easily exchangable Other handrail designs optional at extra charge. |
voltage supply: | 200 ... 240 Volt AC 1~/N/PE 50/60 Hz 16A fuse; dedicated circuit, line and protection |
size of frame: | L x W x H: 210 cm x 86cm x 126cm (6ft 11“ x 2ft 9.9“ x 4ft 1.6“) |
mass of device: | approx. 225 kg (495 Ibs) |
mass of packaging: | 75 ... 265 kg (165 ... 585 lbs) depending on requirements |
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
Weight and dimensions may differ depending on accessories.
Optionally available at extra charge are special frame colours, other handrail designs, special voltage supply, other options and accessories. Weight and package specifications can deviate according to options, accessories packing and way of transport. E&OE. Subject to alterations without prior notice. Please consider the natural and physical performance limitations of the single phase 230 volt power supply. The single phase 230 volt power supply is sufficient up to normal fitness or therapy applications. For all special high performance applications (speed running, controlled jump-ons, sidesteps, heavy subjects at higher speed, extreme elevations, etc.), we recommend models with a 3-phase, 3x400 volt power supply (for example model h/p/cosmos quasar® med 3p, pulsar® 3p, venus® or saturn®).
Warning! Installation, commissioning, instruction, maintenance and repair work only to be conducted by h/p/ cosmos trained and authorized personnel. For treadmills with oversized deck (width >65cm), for children, spe- cial applications, without sufficient safety space behind the treadmill, for subjects and / or patients with health or other limitations (e.g. visual impairment, etc.), for running at high speed and / or for all individuals, where a fall triggers a dangerous risk of injury or death (e.g. newly operated hip patients, invasive probes, etc.), a fall prevention system is obligatory (e.g. safety arch with chest belt and harness or a weight support system). For more information see the instructions for use. Safety space behind the treadmill: min. L: 2 m (6ft 6.74“) x treadmill width. Children are only allowed to be on the treadmill, if under permanent supervision and secured by a fall prevention system.
page: 18
cos01-en-tor-01
page: 19 cos01-en-tor-01
sports / athletics
sports
quasar®
cycling & athletics
saturn® med 300/100r
performance diagnostics
pulsar® med 3p
German Engineering since 1988
inline skating
saturn® med 300/125r
fitness
pluto® / mercury® / quasar® / pulsar®
functional training
pulsar® med 3p + robowalk®
motion analysis
quasar® med
cross country skiing skating / biathlon
saturn® med 450/300rs
expander training
robomove®
wheelchair
saturn® med 300/125r
bike ergometer
torqualizer®
speed training / speedlab®
quasar® 3p
biomechanics gait parameters
optogait
rehabilitation
active gait correction
Fz
Mz
Fy My
Mx Fx
robowalk® expander / mercury® med
angiology
mercury® med
senior fitness
mercury®
gait analysis / biomechanics
gaitway® 3d with force and pressure measurement
orthopaedic rehabilitation
mercury® med / arm support / airwalk® ap
cardiovascular stress testing / CPET
mercury® med
cardiac rehabilitation
mercury® med
locomotion therapy
locomotion® med 150/50
body weight supported treadmill therapy
© 05 /2024 h/p/cosmos [cos01-en-tor-01] Errors and omissions excepted. h/p/cosmos is certified according to EN 13485 for medical treadmills.
All technical data, descriptions, equipment variants and illustrations of devices, options and accessories are non-binding, in particular do not represent warranted characteristics and can deviate from offer and delivery.
The Bluetooth®, Windows®,, NFC and further word marks and logos are registered trademarks. All word marks, logos and trademarks are the property of their respective owners.
airwalk® ap / mercury® med
bike ergometer
torqualizer® 1200
medical certification pending
special applications
Fz
Mz
Fy My
Mx Fx
environmental & climate chambers
quasar® med 3p with
external UserTerminal
h/p/cosmos dealer contact:
biomechanics
gaitway® 3d
military / army
quasar® special version
manufacturer
speed training
sprint trainer comet®
fire fighter ladder training & fitness
discovery®
h/p/cosmos sports & medical gmbh
Am Sportplatz 8
83365 Nussdorf-Traunstein
Germany
phone: +49 86 69 86 42 0
fax: +49 86 69 86 42 49
sales@hpcosmos.com www.hpcosmos.com
skype: @hpcosmos.com (search & select name) youtube: youtube.com/hpcosmos
twitter: twitter.com/hpcosmos facebook: facebook.com/hpcosmos
