quasar®
sports, diagnostics, medical and rehabilitation treadmills
ahead of time®

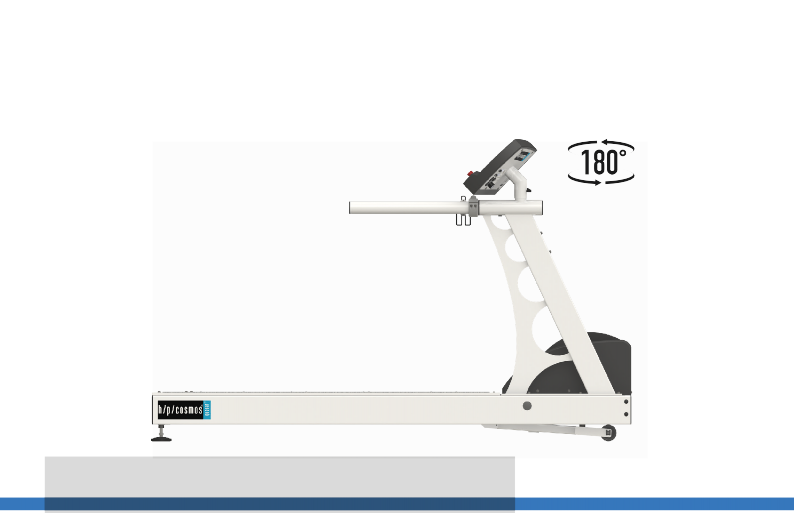

UserTerminal
rotatable

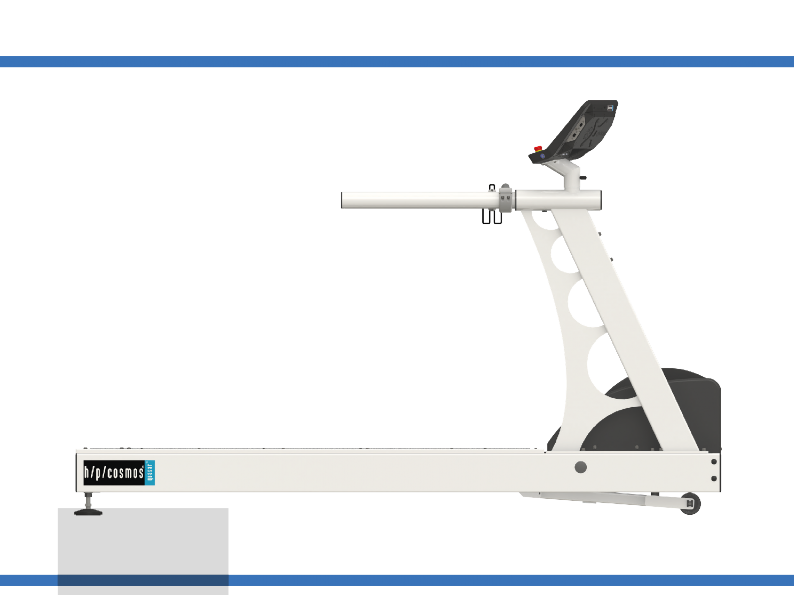

quasar® med MCU5 with standard handrails
reliable treadmills made in germany
German Engineering since 1988

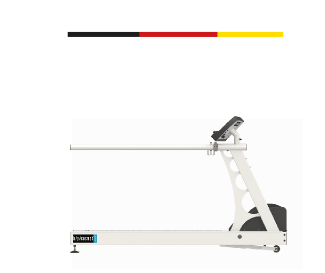

quasar® med with optional long handrails [cos103876]
Benefit from our experience since 1988 in building and servicing standard and customized treadmill solutions around the globe.
h/p/cosmos has been developing and building treadmills since 1988 in Germany for various fields including fitness, competitive sports, sports medicine, orthopedic and neurological rehabilitation, sport science, biomechanics, uniformed services, performance diagnostics, cardiopulmonary diagnostics and rehabilitation. This experience, maximum standards in quality and advanced technology are the foundation of our business and also reflected in the quasar® med treadmills.
The outstanding level of h/p/cosmos products and service as well as attractive prices
form the h/p/cosmos standard.

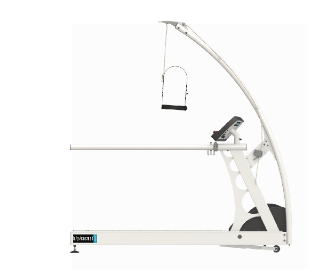

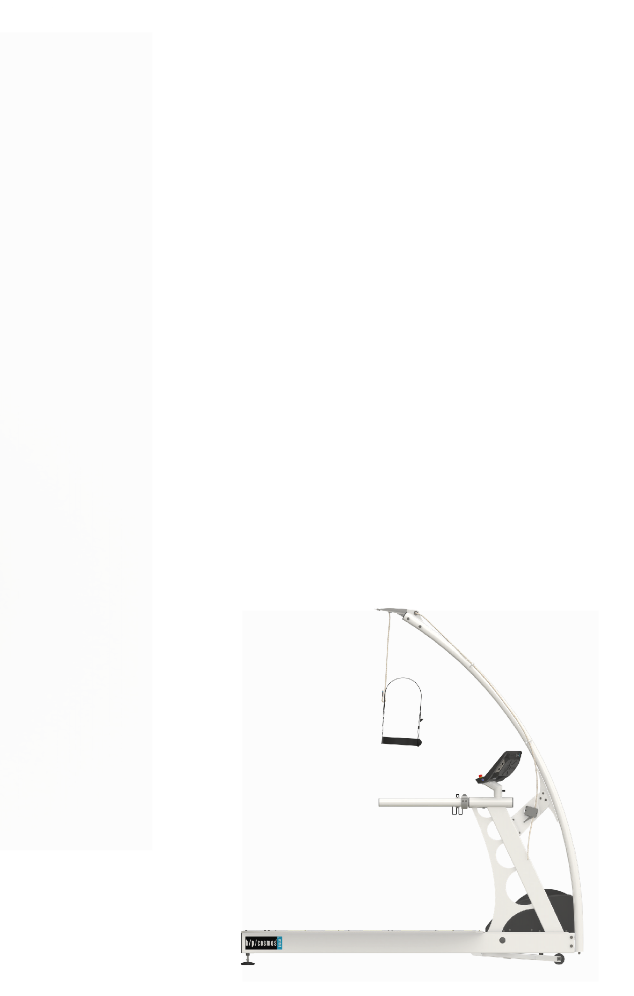

quasar® med with optional long handrails [cos103876] and safety arch fall prevention [cos10079-01va02]
With their stable frame, the treadmills are almost indestructible, very low-maintenance and offer both runner or patient a pleasant running feeling thanks to their state-of-the- art design. They also stand out due to their smooth running, their versatile functions, their powerful drive system and their timeless and user friendly design.
Our treadmills are available as risk class IIb medical treadmills as well as sports treadmills. As a medical device, they are particularly suitable for the use in the fields of cardiology, neurology, cardiological rehabilitation and physiotherapy. The interface via coscom® v4 of the h/p/cosmos treadmill and ergometer series enables the connection to ECG, ergospirometry systems, blood pressure monitors and software programs.
Treadmills off the peg can be many, at h/p/cosmos you can also get your individually assembled treadmill solution with a large selection of options and accessories. Too little budget for the desired configuration? Changed demands on the treadmill system due to new business areas or new areas of application? No problem, most options and accessories can also be retrofitted at a later date. With h/p/cosmos you are always on the right track, because you cannot make the wrong decision due to the flexible and modular design.

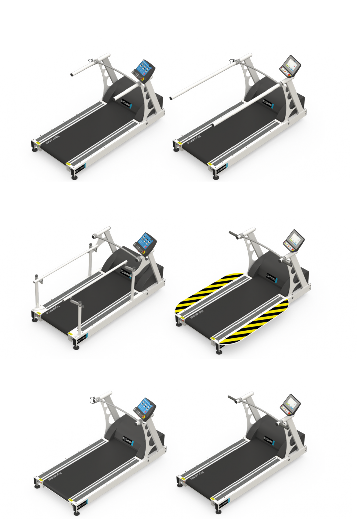

flexible handrail concept
The ingeniously simple plug-in concept makes it a child‘s play to change the handrails and adapt them to the required application. As standard we deliver all treadmills of the quasar® series with handrails, which cover about half of the running surface length. By quickly loosening two hex head screws, the short handrail can be easily removed and replaced by the therapist or trainer with a long handrail (reaching to the end of the running surface), either on one side or on both sides (for extended safety when stepping onto the running deck).

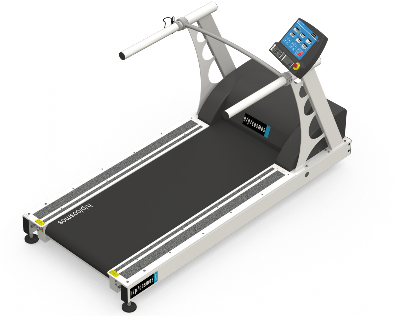

quasar® med MCU5 with standard handrails

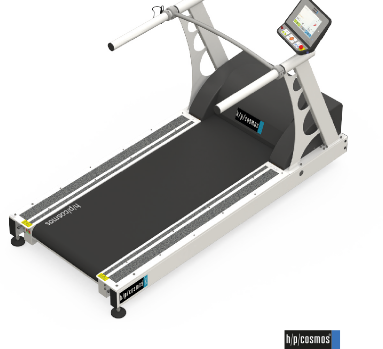

quasar® med MCU5
with optional adjustable handrails [cos102550-01]

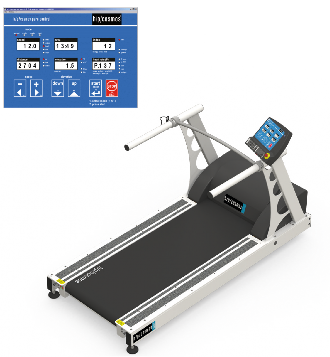

quasar® med MCU6
with optional long handrails [cos103876]
quasar® med MCU6
with optional speed handrails [cos103651] and extra
wide footboards left [cos16586] and right [cos102288].
The quasar treadmills can also be supplied with height and width adjustable handrails. This variant is ideal if you serve a heterogeneous clientele (adjustment range is from 765...1215 mm in height and 665...1315 mm in width, serving most subjects). They offer the different patient types (from children, to small and large persons as well as for obese patients) optimal conditions for therapy and/or training. In combination with the optional arm support, you also enable patients to train more safely and without fear. As an additional feature, the optional arm support offers the possibility of a manual unweighting by the patient relieving partial body weight on these stable pads.
For special applications, the handrails can be completely removed. Due to safety reasons, a crossbar must then be used, which is mounted on two very short handrails or on speed handrails with additional grips for better jump-on and jump-off during hyperspeed sprint trainings. This variant makes sense, for example, if a video analysis is carried out in the saggital plane or if an ECG stress test is carried out in cardiology (handrail might interfere with cable routing).
quasar® med MCU5
with optional very short handrails [cos103867]
quasar® med MCU6
with optional speed handrails [cos103651]

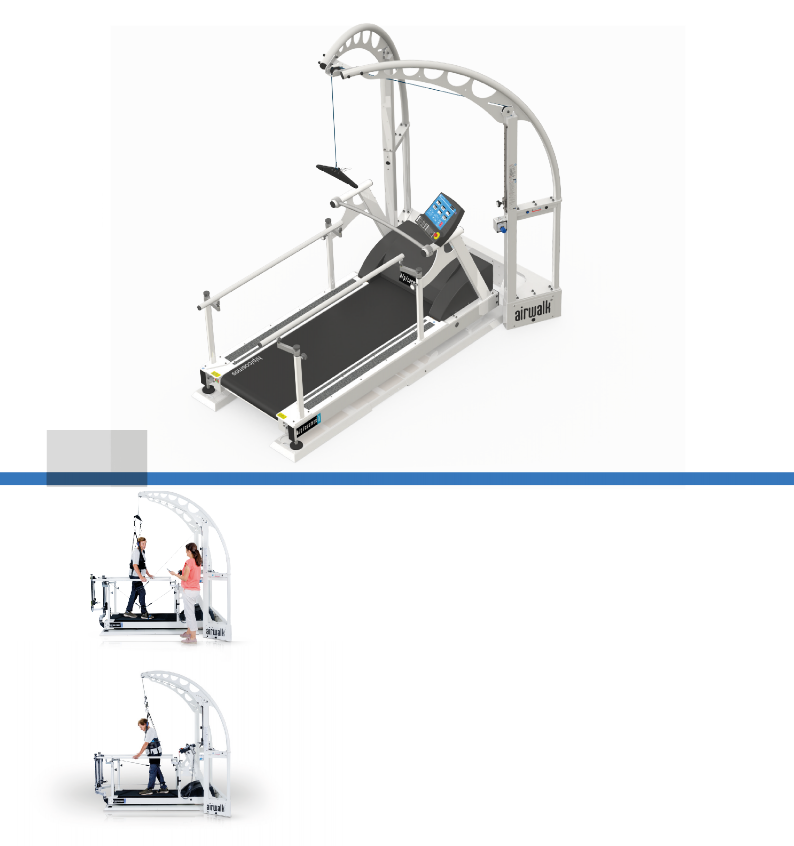

quasar® med MCU5 with adjustable handrails [cos102550-01] and airwalk® ap unweighting system [cos30028]
quasar® med MCU5 with adjustable handrails [cos102550-01], airwalk® ap unweighting
system [cos30028], robowalk® front [cos30022-02va04] and back [cos30023-03]
quasar® med MCU5 with adjustable handrails [cos102550-01], airwalk ap unweighting
system [cos30028], robowalk® front [cos30022-02va04],back [cos30023-03]
and reverse belt rotation [cos10181-03]
arm support with 3 joints [cos12013-01] for all handrails (Ø 60 mm) and additional keyboard [cos100680-01]
Additional options for your individual treadmill solution
s
option
The numerous additional options allow you to adapt h/p/cosmos treadmills exactly to
your needs and your field of application. Some of our most successful options:
In the event of a fall, the patient is caught with a safety harness and the treadmill is automatically stopped.

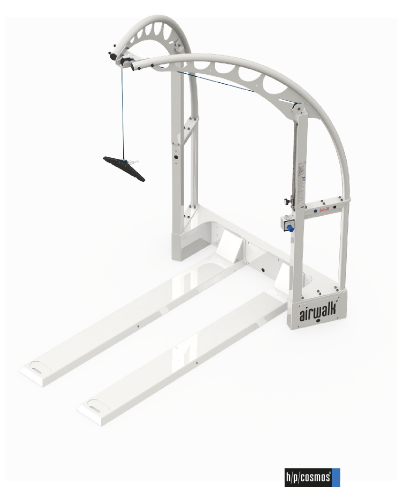

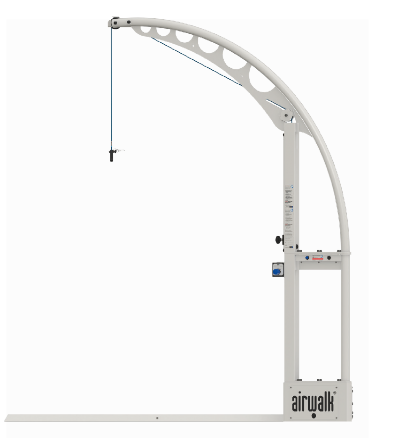

Unweighting system (dynamic and continuously adjustable approx. 0.5...80 kg) and optional emergency stop (patient is caught in a vest or neopren short and the treadmill stops). For operation of the airwalk® ap, a compressor is needed.
The running belt runs in the opposite direction. With the incline set at the same time, downhill running can be simulated. The option is available for all h/p/cosmos treadmills with incline option.
The h/p/cosmos robowalk® is a patented expander-pulley system for h/p/cosmos treadmills. The test person‘s legs are connected to the force level and force vector adjustable rubber cables via cuffs and offer support and resistance during the walking and running movement. Especially the traction support by the rubber cords is a valuable help for patients and therapists to perform exercises physiologically and longer, thus improving the therapy success.
The individually adjustable arm supports give the patient stability and a feeling of safety. Arm support with 3 joints for handrails with Ø 60 mm or arm support for adjustable handrails available.
The patient can control the treadmill without removing the arms from the armrests. Therapists can control the treadmill externally from a comfortable position around the treadmill.
Our wheelchair ramp enables patients to safely access the treadmill.

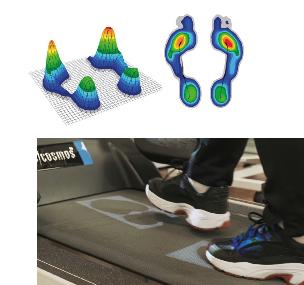

comprehensive pressure plot visualisation
adaptive visual cueing [cos101291-01] with projected steps on the treadmill belt
gait and coordination training on a treadmill using virtual feedback [cos101062] and dual-tasking

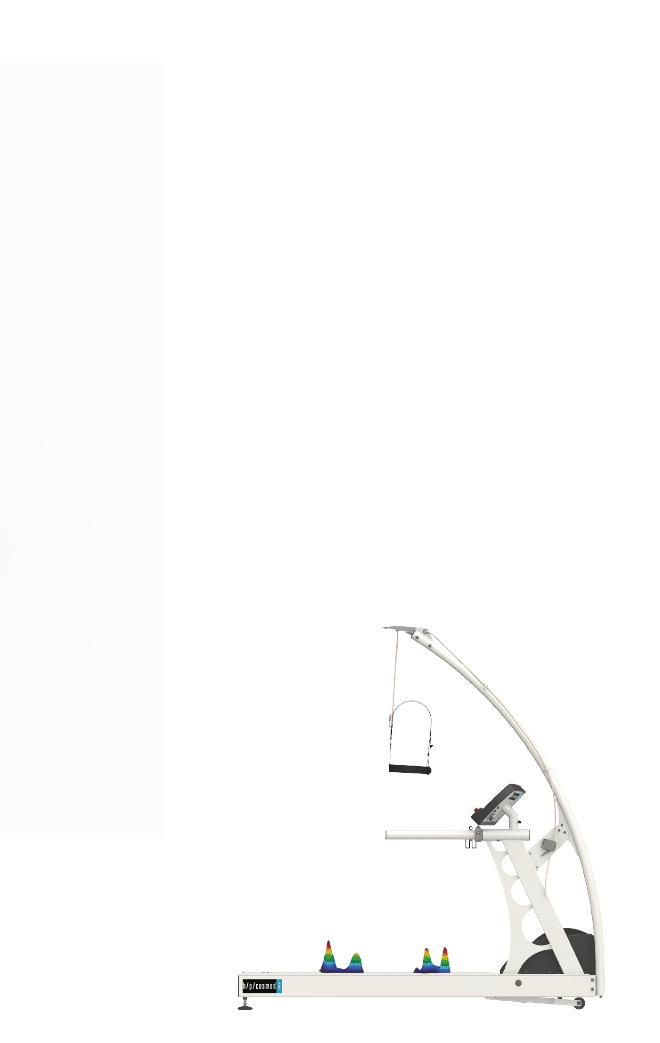

zebris® pressure distribution
options
The quasar® series treadmills can be equipped or retrofitted with an integrated pressure
distribution platform from the German manufacturer zebris®.
This upgrade allows versatile applications for rehabilitation, training and analysis! Underneath the belt, a pressure sensor matrix is installed that contains several thousand calibrated, capacitive pressure sensors. The belt movement is compensated, so stable gait and roll-off parameters can be analysed and displayed in a comprehensive software interface as well as in reports - a well proven and established tool amongst therapists.
The initial gait analysis is carried out without any measuring preparations to be done on the patient. The measuring process can be observed on the screen in real-time. The report is automatically generated. In order to prepare the gait training using adaptive visual cueing, the parameters from the gait analysis (step length & width and foot rotation) are automatically transferred and can be individually adjusted according to training objectives. The values remain constant or gradually approach the target settings during the course of the training. During training the steps are projected onto the treadmill belt in the shape of the actual footprints, or alternatively as rectangles. Throughout the gait training the patient is instructed to position his or her feet as accurately as possible within the projected area. The gait training including visual stimulation/cueing is also possible when using an unweighting system and thus also allows for patients who are suffering from severe functional limitations to start therapy even at an early stage. The report documents the adherence to the target settings. On that basis, the target parameters can be adjusted to the patient’s individual capability. For an optimal training control, two gait analyses are compared, e.g. before and after a training period.
Physical and cognitive abilities are simultaneously demanded during dual-task-training in the virtual walking environment. The patient solves simple perceptual and memory tasks as well as arithmetic problems while walking and observing his or her footprints. Thus, reaction time and attentiveness are improved while simultaneously supporting automated walking. The various modules allow the training to be individually adapted to each patient.
technical comparison
quasar® med with MCU5 [cos30003va20] quasar® med with MCU6 [cos30003-01va02]
Discover the h/p/cosmos medical treadmills quasar® med series.
The quasar® med series offers a wide range of options and accessoires. With the next generation UserTerminal MCU6 with a graphic user interface (GUI) as well as a widely advanced connectivity and additional features, a new milestone in treadmill experience has been set.
model name | quasar® med (MCU5) | quasar® med (MCU6) |
Article number: | cos30003va20 | cos30003-01-va02 |
Device dimensions: | L: 230 x W: 105 x H: 145 cm | L: 230 x W: 105 x H: 149 cm |
Device weight: | 309 kg | 332 kg |
Running surface: | L: 170 x W: 65 cm | |
Max. user weight: | 300 kg | |
Speed range: | 0...25 km/h (optional at extra charge: 0...30 or 40 km/h) | |
Elevation: | 0...+28% (optional at extra charge: -28...+28%) | |
Drive motor system: | 3.3 kW (4.5 HP) brushless 3-phase AC motor | |
Power supply: | 230 Volt AC, 15...16A fuse type C, dedicated line | |
Running belt: | reinforced running belt with profiled surface, ~ 5 mm thick | |
Wireless heart rate: | 5 kHz receiver incl. POLAR® chest belt | 5 kHz & Bluetooth® receiver incl. POLAR® chest belt |
UserTerminal, Features, Displays & Resolutions: All UserTerminals have integrated Conconi, Cooper, Bruce, Balke, Naughton and UKK 2km Walk Tests, automatic and free definable programs. | MCU5 with 6 LCD displays, 4 LEDs for operation modes, 20 LEDs for display of units & profile no, steps, etc. speed (0.1 km/h or m/s or m/min or mph), time in hours, minutes & seconds, elevation (0.1 % or degrees), distance (1 m. 999.9 km or miles), METS (1 MET) program step/number, energy (1 kJ/kcal), fitness index (1) power (1 Watt), heart rate (1 bpm / beat per minute), RS232 interface (optional USB adapter) with coscom® v3 and v4 | MCU6 with 10.1“ TouchScreen (1280x800) & Windows® 10, 9 hardware keys for manual control with medical gloves or under sweaty conditions, interface coscom® v4, parameter: 1 or 2 tdecimal places, speed, time, elevation, distance, METS, energy consumption, altitude, power, pace, heart rate, heart rate variability (digital & scatter diagram), RFID / NFC Reader (optional), 4x USB 2.0 (1x USB 3.0 internal), Bluetooth® / WiFi / WLAN (optional) 1x LAN / RJ45, 1x HDMI connection, 1x RS232 1x connection for safety arch fall stop |
Classification & safety for medical devices | n; risk class IIb; machinery directive 2006/42/EC; ISO 20957-1;EN 957-6; EN 14971; EN ISO 13485; IEC60601-1; EN 60601-1-2 (EMC approved); IEC 62304 | |
Classification & safety for sport devices | quasar® | cos30003va16 | quasar® MCU6 | cos30003-01va01 |
c; machinery directive 2006/42/EC; EMC directive 2014/30/EU; ISO 20957-1; EN 957-6; EN 60335-1 | ||
pos. | qty. | order number | product description | ||
1. | 1 | cos30003-01va01 | h/p/cosmos treadmill quasar® MCU6 running surface 170 x 65 cm, speed range 0 ... 25 km/h, elevation 0 ... 28 %, UserTerminal MCU6 with keyboard and display, integrated interface and coscom® v3/v4 protocol | ||
2. | 1 | cos103815 | Reverse treadmill belt rotation incl. belt centering rolls, max. reverse speed: 5 km/h, with safety arch: 25 km/h | ||
3. | 1 | cos101000_NFC | NFC / RFID module for MCU6 | ||
4. | 1 | cos101000_sound | Sound module for MCU6, additional adjustable loudspeaker in MCU6 User Terminal, 2 watt nominal load capacity | ||
5. | 1 | cos101000_wifi | WLAN / WIFI module for MCU6 | ||
6. | 1 | cos101000_bluetooth | Bluetooth for MCU6 | ||
7. | 1 | cos101000_step | Module step-detection for MCU6 | ||
8. | 1 | cos102488_iph_vesa | SmartPhone holder for MCU6 UserTerminal | ||
9. | 1 | cos16586 | Footboard extra wide (left side) for safe on and off stepping during fitness trainings and exercises For speed & sprint training safety arch is an obligatory requirement. | ||
10. | 1 | cos103651 | Handrail speed, pluggable handrail speed with special grip for right and left side | ||
11. | 1 | cos12769-01 | USB to RS232 converter, converter from USB to serial port RS232 (Sub-D 9-pin male) | ||
12. | 1 | cos10177 | Packing treadmill 170&190/65(SA), packed part assembled on pallet with cardboard hood, incl. safety arch (L: 274 cm / W: 122 cm / H: 94 cm) | ||
13. | 1 | cos60098010021 | transport / shipping charge (please specify if truck, sea or air freight; for overseas sea shipment is recommended) | ||
14. | 1 | cos10194 | installation, commissioning and instruction through authorised and trained personnel | ||
total price net, excluding VAT, excluding custom duties | |||||
VAT (19 % in Germany, other VAT and/or custom duties may apply in other countries) | |||||
system price h/p/cosmos solution for gait training: please ask your dealer for a quotation | |||||
configuration quasar® mcu6: running school
10
Free definiable programs including
acceleration and deceleration levels for each individual program step.
9
1
2
recommended configuration running school quasar® MCU6
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com

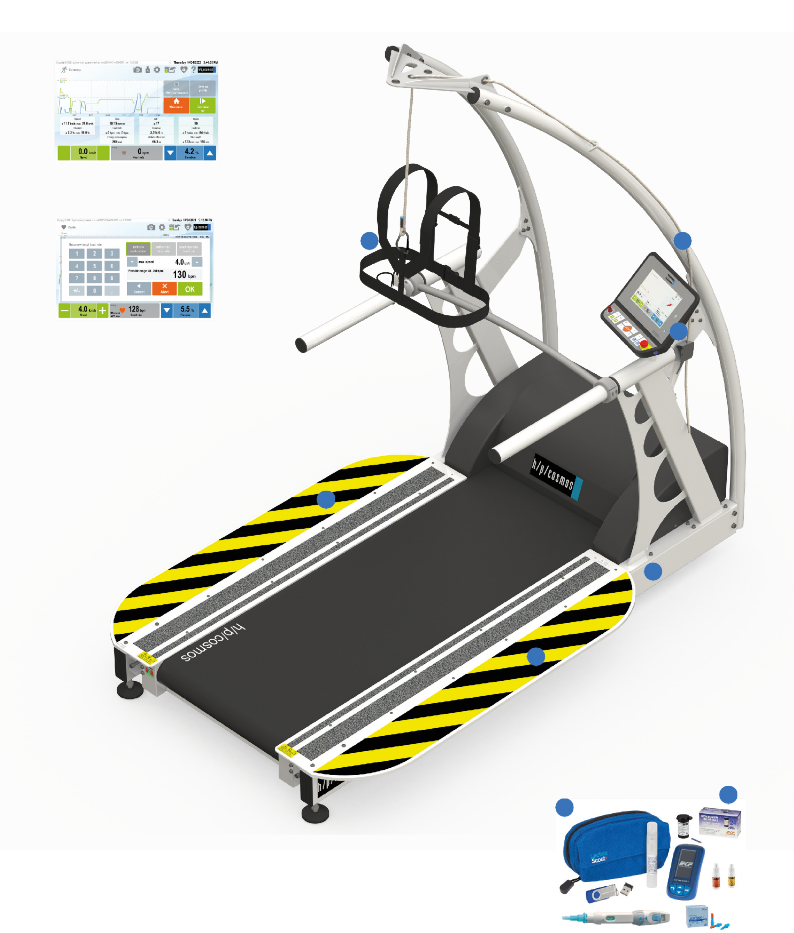

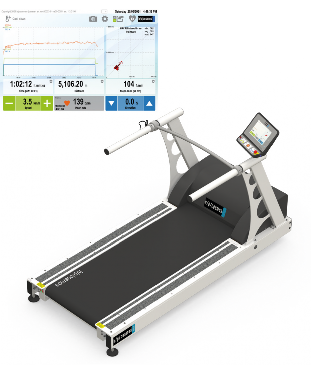

configuration quasar® med mcu6: performance diagnostics
The MCU6 summary screen shows all relevant data of the
workout including average and max. speed, elevation, duration and heartrate as well as biomechanical indicators as steplengths and cadence.
12 11
Cardio mode allows target heart rate in combination with maximum speed 2
range definition for controlling the physical load by means of a combination of speed & elevation.
9
1
10
17
18
configuration quasar® med mcu6: performance diagnostics
recommended configuration performance diagnostics quasar® med MCU6
pos. | qty. | order number | product description | ||
1. | 1 | cos30003-01va02 | h/p/cosmos treadmill quasar® med MCU6 running surface 170 x 65 cm, speed range 0 ... 25 km/h, elevation 0 ... 28 %, UserTerminal MCU6 with keyboard and display, integrated interface and coscom® v3/v4 protocol | ||
2. | 1 | cos00098010025 | 2nd interface RS232 com2 coscom® 9,600 bps additional RS232 port for ECG, EEG, PC, printer or UserTerminal | ||
3. | 1 | cos101000_NFC | NFC / RFID module for MCU6 | ||
4. | 1 | cos101000_sound | Sound module for MCU6, additional adjustable loudspeaker in MCU6 User Terminal, 2 watt nominal load capacity | ||
5. | 1 | cos101000_wifi | WLAN / WIFI module for MCU6 | ||
6. | 1 | cos101000_bluetooth | Bluetooth for MCU6 | ||
7. | 1 | cos101000_step | Module step-detection for MCU6 | ||
8. | 1 | cos102488_iph_vesa | SmartPhone holder for MCU6 UserTerminal | ||
9. | 1 | cos16586 | Footboard left extra wide (speed), for safe on and off stepping during fitness trainings and exercises for speed & sprint training safety arch is an obligatory requirement. | ||
10. | 1 | cos102288 | Footboard right extra wide (speed), for safe on and off stepping during fitness trainings and exercises for speed & sprint training safety arch is an obligatory requirement. | ||
11. | 1 | cos10079-01va02 | Safety arch 65 with harness & chest belt / stop function, fall protection for all applications (mandatory for high risk applications); running surface 65 cm wide | ||
12. | 1 | cos14903-04-S | Chestbelt S for safety arch system, colour code: orange, for chest measurement approx. 65-95 cm | ||
13. | 1 | cos14903-04-M | Chestbelt M for safety arch system, colour code: black, for chest measurement approx. 85-115 cm | ||
14. | 1 | cos14903-04-L | Chestbelt L for safety arch system, colour code: red, for chest measurement approx. 105-135 cm | ||
15. | 1 | cos14903-04-XL | Chestbelt XL for safety arch system, colour code: red, for chest measurement approx. 125-155 cm | ||
16. | 1 | cos12769-01 | USB to RS232 converter, converter from USB to serial port RS232 (Sub-D 9-pin male) | ||
17. | 1 | cos14827-02 | Lactate test strips sirius® 72 for Lactate Scout, 72 strips per box | ||
18. | 1 | cos100650-02 | Starter kit sirius® with Lactate Scout lactate test meter, includes cos14825-03, cos14854-01, cos100773, 6x cos100774 | ||
19. | 1 | cos10177 | Packing treadmill 170&190/65(SA), packed part assembled on pallet with cardboard hood, incl. safety arch (L: 274 cm / W: 122 cm / H: 94 cm) | ||
20. | 1 | cos60098010021 | transport / shipping charge (please specify if truck, sea or air freight; for overseas sea shipment is recommended) | ||
21. | 1 | cos10194 | installation, commissioning and instruction through authorised and trained personnel | ||
total price net, excluding VAT, excluding custom duties | |||||
VAT (19 % in Germany, other VAT and/or custom duties may apply in other countries) | |||||
system price h/p/cosmos solution for gait training: please ask your dealer for a quotation | |||||
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
page: 9 cos01-en-qua

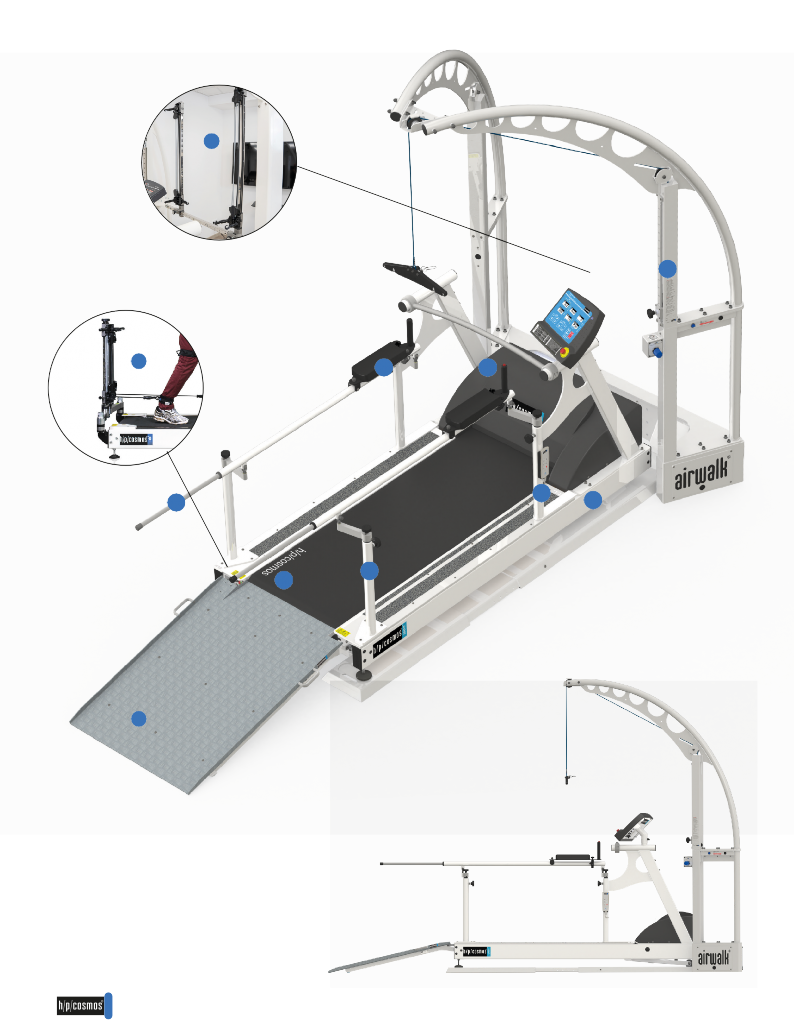

configuration quasar® med: gait rehabilitation & return to sports
16
9
robowalk® expander front for airwalk® ap
17 5 6
robowalk® expander back
4 7 1
2 3
23
page: 10 cos01-en-qua
configuration quasar® med: gait rehabilitation & return to sports
recommended configuration gait rehabilitation & return to sports quasar® med
pos. | qty. | order number | product description | ||
1. | 1 | cos30003va20 | h/p/cosmos treadmill quasar® med MCU5 running surface 170 x 65 cm, speed range 0 ... 25 km/h, elevation 0 ... 28 %, via UserTerminal MCU5 with keyboard and display, integrated interface or via optional remote control | ||
2. | 1 | cos10181-03 | Reverse belt rotation (downhill), incl. belt centering rolls, max. reverse speed: 5 km/h, with safety arch: 10 km/h | ||
3. | 1 | cos102550-01 | Handrails adjustable 170/65 bar length 1500 mm, locking bar for height raster 25 mm, H: 765...1215 mm, W: 665...1315 mm | ||
4. | 1 | cos102899 | Extension rods for adjustable handrails, D= 25 mm offer another 550 mm lenght to the back | ||
5. | 1 | cos102560 | Arm supports for handrails adjustable, Forearm support with hand grip for adjustable handrails | ||
6. | 1 | cos10107 | Additional stop-button right, stop-button for hand grip in the arm support, right hand side | ||
7. | 1 | cos100815-01 | Additional keyboard with magnet holder, mobile remote control with 6 keys with a approx. 2 m coiled cord - with magnet holder for all handrails | ||
8. | 1 | cos100816 | Extension cable for additional keyboard, Spiral cable extendable to 2 meters | ||
9. | 1 | cos30028 | airwalk® ap, unweighting device dynamic up to approx. 80 kg, compressor or compressed air supply required (max. 250 kg / 551 lbs body weight), incl. chest belt size M | ||
10. | 1 | cos103058 | Compressor for airwalk® ap, 8 bar | ||
11. | 1 | cos102342-01 | Emergency stop for airwalk® ap, additional function of airwalk ap also as fall prevention system (safety arch) with autom. treadmill belt stop | ||
12. | 1 | cos100432-01 | Extension sling set 60 cm for h/p/cosmos airwalk ap, i.e. for small subjects (children) in airwalk vest XS | ||
13. | 1 | cos102785-01 | Express sling/loop 18 cm, 1x express sling/loop 18 cm for extension of pulling rope | ||
14. | 1 | cos10095-vest-S | Vest S for h/p/cosmos airwalk® (all models), size S (thorax circumference: 85-92 cm), colour code red | ||
15. | 1 | cos10095-vest-L | Vest L for h/p/cosmos airwalk® (all models), size L (thorax circumference: 106-114 cm), colour code green | ||
16. | 1 | cos30022-02va04 | robowalk® expander front for airwalk® ap, for the front area | ||
17. | 1 | cos30023-03 | robowalk® expander back (rear) | ||
18. | 1 | cos101050-S | Leg cuff thigh S (250 - 390 mm), 1 pair | ||
19. | 1 | cos101050-M | Leg cuff thigh M (350 - 510 mm), 1 pair | ||
20. | 1 | cos101050-L | Leg cuff thigh L (490 - 750mm), 1 pair | ||
21. | 1 | cos101051-XS | Leg cuff shank XS (140 - 270mm), 1 pair | ||
22. | 1 | cos101748-01 | Universal noose robowalk® | ||
23. | 1 | cos14664-03 | Wheelchair ramp (L: 130 cm x W: 101 cm) enables the patients’ wheelchair to be pushed onto the treadmill | ||
24. | 1 | cos10177 | Packing treadmill 170&190/65(SA), packed part assembled on pallet with cardboard hood, incl. safety arch (L: 274 cm / W: 122 cm / H: 94 cm) | ||
25. | 1 | cos102538va02 | Packing airwalk® ap, part assembled, packed part assembled on pallet with cardboard hood (L: 230 cm / W: 109 cm / H: 90 cm) | ||
26. | 1 | cos60098010021 | transport / shipping charge (please specify if truck, sea or air freight; for overseas sea shipment is recommended) | ||
27. | 1 | cos10194 | installation, commissioning and instruction through authorised and trained personnel | ||
total price net, excluding VAT, excluding custom duties | |||||
VAT (19 % in Germany, other VAT and/or custom duties may apply in other countries) | |||||
system price h/p/cosmos solution for gait training: please ask your dealer for a quotation | |||||
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
The MCU6 summary screen shows all relevant data of the
workout including average and max. speed, elevation, duration and heartrate as well as biomechanical indicators as steplengths and cadence.
Cardio mode allows target heart rate in combination with maximum speed
range definition for controlling the physical load by means of a combination of speed & elevation.
Summary report can be saved in PDF and .csv format with automatically generated informative and editable file name to the connected USB stick.
page: 11 cos01-en-qua

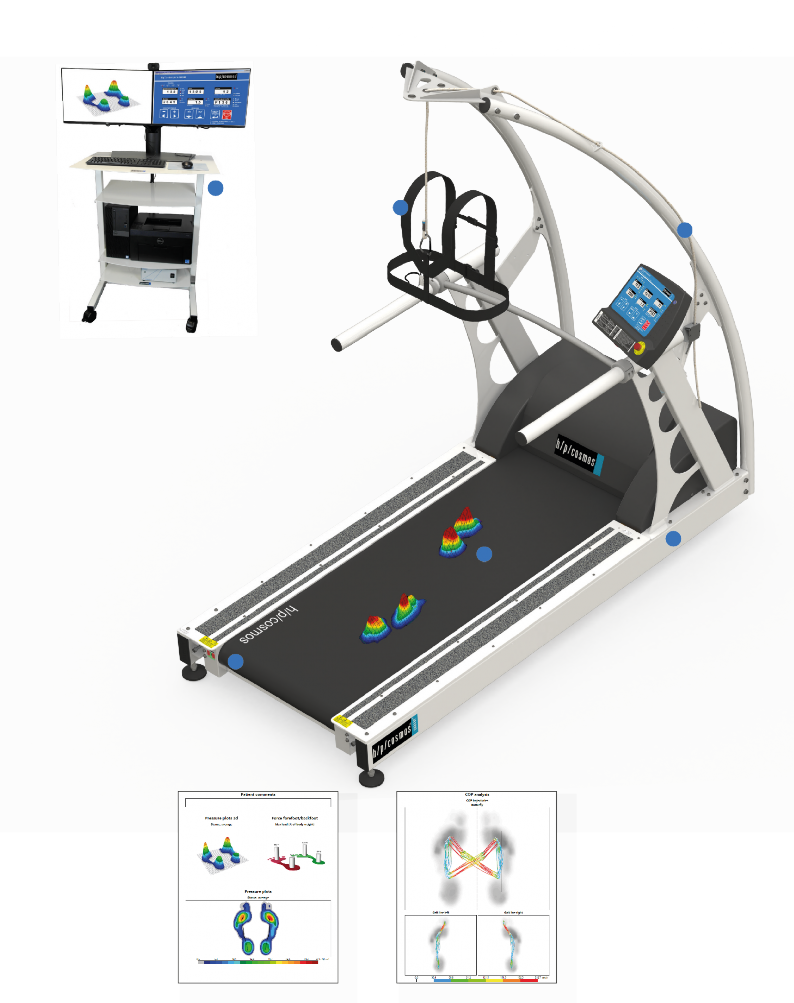

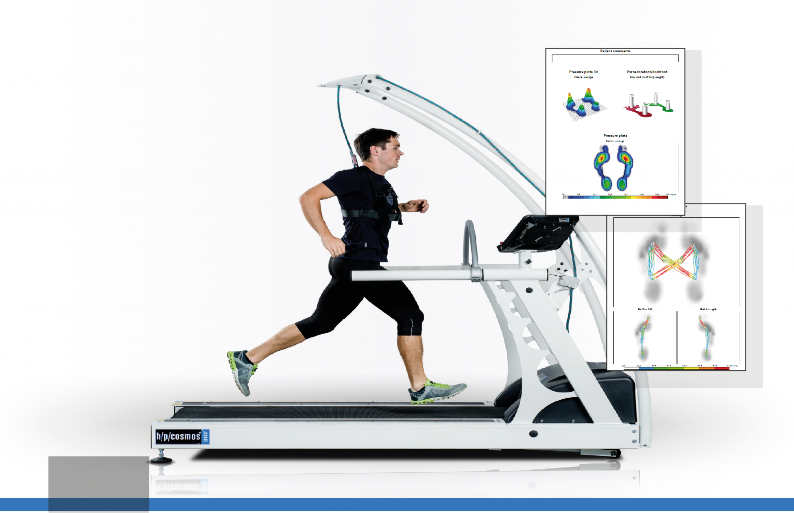

configuration quasar® med: gait analysis standard zebris
recommended configuration gait analysis zebris standard quasar® med
10
8
7
1
3
2
detailed reports from the zebris software enable analysis and conclusions on the patients‘ gait, balance and pressure indicators
configuration quasar® med: gait analysis standard zebris
recommended configuration gait analysis zebris standard quasar® med
pos. | qty. | order number | product description | ||
1. | 1 | cos30003va20 | h/p/cosmos treadmill quasar® med MCU5 running surface 170 x 65 cm, speed range 0 ... 25 km/h, elevation 0 ... 28 %, via UserTerminal MCU5 with keyboard and display, integrated interface or via optional remote control | ||
2. | 1 | cos10181-03 | Reverse belt rotation (downhill), incl. belt centering rolls, max. reverse speed: 5 km/h, with safety arch: 10 km/h | ||
3. | 1 | cos102292 | zebris® FDM pressure measuring platform 2i upgrade for running deck 170/65, without treadmill option pressure distribution platform 132.1 x 55.9 cm, 4.576 sensors, 120 Hz, price only valid for initial fitting-out, incl. software zebris FDM for gait analysis | ||
4. | 1 | cos100385i | zebris® SyncCam HS (camera without tripod), video camera 60 Hz, video camera 60 fps Full HD (1920x1080), 90 fps HD (1920x720), 120fps VGA (640x480) | ||
5. | 1 | cos100385b | zebris® stand for SyncCam or SyncLightCam (mobile) mobile stand for SyncCam and SyncLightCam with integrated cable fixation | ||
6. | 1 | cos100384 | zebris® FDM-Stance Modul extra software module for stance & balance analysis for instrumented biomechanic treadmill or platform stand alone | ||
7. | 1 | cos10079-01va02 | Safety arch 65 with harness & chest belt / stop function, fall protection for all applications (mandatory for high risk applications); running surface 65 cm wide | ||
8. | 1 | cos14903-04-S | Chestbelt S for safety arch system, colour code: orange, for chest measurement approx. 65-95 cm | ||
9. | 1 | cos14903-04-L | Chestbelt L for safety arch system, colour code: red, for chest measurement approx. 105-135 cm | ||
10. | 1 | cos14970-03 | h/p/cosmos satellite PC med DELL PC, 2x 24" LCD Monitor, COL Laser printer, potential isolation transformer, h/p/cosmos PC-rack with 4 casters | ||
11. | 1 | cos102397 | LCD monitor TV 50‘‘ (with a small monitor stand for table) for example for SpeedLab®, gaitway® display or for the virtual training module of zebris® | ||
12. | 1 | cos101624 | Monitor stand mobile for LCD TV 32-60‘‘ monitor stand (without monitor!) for additional TV / monitor (max. load: 30 kg), height: 180 cm. | ||
13. | 1 | cos12769-01 | USB to RS232 converter converter from USB to serial port RS232 (Sub-D 9-pin male) | ||
14. | 1 | cos102522va04 | Packing treadmill 150/50, fully assembled with cardboard hood (L: 230 cm / W: 109 cm / H: 169 cm) | ||
15. | 1 | cos60098010021 | transport / shipping charge (please specify if truck, sea or air freight; for overseas sea shipment is recommended) | ||
16. | 1 | cos10194 | installation, commissioning and instruction through authorised and trained personnel | ||
17. | 1 | cos101094 | 1-day application workshop, includes costs for specialist / referent. Not including flight, logistics, hotel, etc. | ||
total price net, excluding VAT, excluding custom duties | |||||
VAT (19 % in Germany, other VAT and/or custom duties may apply in other countries) | |||||
system price h/p/cosmos solution for gait training: please ask your dealer for a quotation | |||||
E & OE. Subject to alterations without prior notice. The illustrations may show accessories and items of optional equipment which are not part of standard specification or the recommended configuration. Subject to our general terms of trade: www.hpcosmos.com
page: 13 cos01-en-qua
treadmill | quasar® med |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos30003va20 |
applications: | endurance training walking and running, stress device for performance testing, gait analysis and gait training |
control: | via UserTerminal MCU5 with keyboard and display, integrated interface or via optional remote control |
keyboard: | 6 keys for manual control, easily controllable with medical gloves and under sweaty conditions |
running surface: | L: 170 cm (5ft 6.9“) B: 65 cm (2ft 1.6“) access height: 23 cm (9.06“)
|
speed range: | 0...25.0 km/h (0...6.9 m/s) (0. 15.5 mph) special speed available at extra charge: 0...10 km/h (0…6.2 mph) 0...30 km/h (0…18.6 mph) 0...40 km/h (0…24.8 mph) |
acceleration: | 7 acceleration / deceleration levels between 131 s and 3 s from 0 to max. or from max. to 0; equals 0.053 … 2.315 m/s² programmable via para control® PC software |
elevation: | 0%...+28.0 % (-15.6°. 15.6°) motorized adjustment, (up to -28 % when using reverse belt rotation) |
running direction: | switch for reversing running belt direction at extra charge, max. permissible reverse speed 5 km/h (3.1 mph) if no safety-harness with fall-stop prevention system is used. |
motor systems: | 3.3 kW (4.5 HP) 3-phase AC motor, maintenance free and brushless; 20 years warranty on main drive motor. For high-performance applications, we recommend models with a 3-phase 3x400 volt power supply and a running surface min. 190/65cm. |
power transmission: | frequency inverter, poly-V-belt, very quiet operation |
safety systems: | n; medical device directive MDD 93/42/EEC; machinery directive 2006/42/EC; EMC directive 2014/30/EU; IEC 60601-1; EN 60601-1-2 (EMC tested); IEC 62304; EN 14971; ISO 20957-1; EN 957-6; emergency-stop mushroom push button (for drive system power-off), emergency-stop switch (safety lanyard with actuator, pull-cord and clip); potential equalization bolt; transformer for potential-isolation from the mains. |
degree of protection: | appliance class I M / type B R / IP 20 |
classification: | medical device risk class IIb according to MDD, active therapeutic medical device and active diagnostic medical device |
usage class: | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to EN 957-6 |
earth leakage current: | ≤ 0.2 mA |
ambient condition: | temperature: +10…+40 °C (-30…+50 °C on request) humidity: 30…70 % (up to 100 % on request) air pressure: 700…1060 hPa; 3,000 m (~10,000 ft) max.altitude without pressurization |
display (resolutions) paramter: | 6 LCD displays, 4 LEDs for operation modes, 20 LEDs for display of units & profile no, steps, etc. speed (0.1 km/h or m/s or m/min or mph), time (00:00) in hours, minutes & seconds, elevation (0.1 % or degrees) distance (1 m. 999.9 km or miles), METS (1 MET) program step/number, energy (1 kJ/kcal), fitness index (1) power (1 Watt), heart rate (1 bpm / beat per minute) |
resolution: | 1 decimal place |
units: | metric / imperial |
heart rate monitoring: | POLAR chest belt & wireless transmitter, 1 channel receiver automatic control of speed and elevation according to programmed target heart rate („cardio mode“) |
specifications quasar® med (MCU5)
digital interface: | 1 x RS 232 com1 with 9600 bps: incl. PC-protocol, h/p/cosmos coscom® & printer protocol serial. option extra charge: USB-RS232-converter; com2; com3 with 115200 bps; com 4. |
programs: | 42 programs / profiles
|
PC software (incl.): | h/p/cosmos para control® for display & remote control; including 1 x RS232 interface cable 5m (16 ft 4.85“) |
PC software: (extra charge) | h/p/cosmos para graphics®, para analysis® & para motion®. PC software for control, monitoring, recording & analysis |
accessory (incl.): | instruction for use on USB stick, drinking bottle holder, service box, special oil, PE potential equalization cable, POLAR chest belt |
colour of frame: | pure white RAL 9010 (powder coated) |
handrails: | steel tube handrails Ø 60 mm on both sides, over min. 1/3 of treadmill length with front-handrail crossbar other handrail designs at extra charge |
voltage supply: | 230 Volt AC 1~/N/PE 50/60 Hz 15...16A fuse; dedicated circuit, line and protection; |
size of frame: | L: 230 cm (7ft 6.6“) W: 105 cm (3ft 5.3“) H: 145 cm (4ft 10.7“ ) |
net. weight: | device approx. 309 kg (681 Ibs) |
gross weight: | device approx. 530...580 kg (1166...1276 Ibs) |
Optionally available at extra charge are special frame colours, other handrail designs, special voltage supply and other options and accessories. Weight and package specifications can deviate according to options, ac- cessories packing and way of transport. E&OE. Subject to alterations without prior notice. Please consider the natural and physical performance limitations of the single phase 230 volt power supply. The single phase 230 volt power supply is sufficient up to normal fitness or therapy applications. For all special high performance applications (speed running, controlled jump-ons, sidesteps, heavy subjects at higher speed, extreme eleva- tions, etc.), we recommend models with a 3-phase, 3x400 volt power supply (for example model h/p/cosmos quasar med 3p, pulsar 3p, venus or saturn).
Warning! Installation, commissioning, instruction, maintenance and repair work only to be conducted by h/p/ cosmos trained and authorised personnel. For treadmills with oversized deck (width >65cm), for children, special applications, without sufficient safety space behind the treadmill, for subjects and / or patients with health or other limitations (e.g. visual impairment, etc.), for running at high speed and / or for all individuals, where a fall triggers a dangerous risk of injury or death (e.g. newly operated hip patients, invasive probes, etc.), a fall prevention system is obligatory (e.g. safety arch with chest belt and harness or a weight support system). For more information see the instructions for use. Safety space behind the treadmill: min. L: 2 m (6ft 6.74“) x treadmill width. Children are only allowed to be on the treadmill, if under permanent supervision and secured by a fall prevention system.
specifications quasar® med (MCU6) - certification pending
digital interface: | RFID / NFC® Reader (optional at extra charge) 4x USB 2.0 (1x USB 3.0 internal) Bluetooth®, WiFi / WLAN (optional at extra charge) 1x LAN / RJ45, 1x HDMI connection 1x RS232, 1x connection for safety arch fall stop |
programs: | 18 programs / profiles (predefined)
import / export of profiles from / to USB stick also for further processing |
PC software (incl.): | h/p/cosmos para control® for display & remote control |
accessory (incl.): | instruction for use on USB stick, drinking bottle holder, service box, special oil, PE potential equalization cable POLAR® H10 heart rate chest belt (Bluetooth® + 5 kHz) |
colour of frame: | pure white RAL 9010 (powder coated) |
handrails: | steel tube handrails Ø 60 mm on both sides, over min. 1/3 of treadmill length with front-handrail crossbar other handrail designs at extra charge |
voltage supply: | 230 Volt AC 1~/N/PE 50/60 Hz 15...16A fuse; dedicated circuit, line and protection; |
size of frame: | L: 230 cm (7ft 6.6“) W: 105 cm (3ft 5.3“) H: 149 cm (4ft 10.7“ ) |
net. weight: | device approx. 332 kg (688 Ibs) |
gross weight: | device approx. 550...600 kg (1210...1320 Ibs) |
treadmill | quasar® med |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos30003-01va02 |
applications: | endurance training walking and running, stress device for performance testing, gait analysis and gait training |
control: | via UserTerminal MCU6 with keyboard, touch display and Windows® 10 operating system, integrated interface coscom v4 |
keyboard: | 9 keys for manual control, easily controllable with medical gloves and under sweaty conditions |
running surface: | L: 170 cm (5ft 6.9“) B: 65 cm (2ft 1.6“) access height: 23 cm (9.06“)
|
speed range: | 0...25.0 km/h (0...6.9 m/s) (0. 15.5 mph) special speed available at extra charge: 0...10 km/h (0…6.2 mph) 0...30 km/h (0…18.6 mph) 0...40 km/h (0…24.8 mph) |
acceleration: | 7 acceleration / deceleration levels between 131 s and 3 s from 0 to max. or from max. to 0; equals 0.053 … 2.315 m/s² programmable via para control® PC software |
elevation: | 0 %...+28.0 % (-15.6°. 15.6°) motorized adjustment, (up to -28 % when using reverse belt rotation) |
running direction: | switch for reversing running belt direction at extra charge, max. permissible reverse speed 5 km/h (3.1 mph) if no safety-harness with fall-stop prevention system is used. |
motor systems: | 3.3 kW (4.5 HP) 3-phase AC motor, maintenance free and brushless; 20 years warranty on main drive motor. For high-performance applications, we recommend models with a 3-phase 3x400 volt power supply and a running surface min. 190/65cm. |
power transmission: | frequency inverter, poly-V-belt, very quiet operation |
safety systems: | n; MDR medical device regulation (EU) 2017/745; machinery directive 2006/42/EC; EMC directive 2014/30/EU; IEC 60601-1; EN 60601-1-2 (EMC tested); IEC 62304; EN 14971; ISO 20957-1; EN 957-6; emergency-stop mushroom push button (for drive system power-off), emergency-stop switch (safety lanyard with actuator, pull-cord and clip); potential equalization bolt; transformer for potential-isolation from the mains. |
degree of protection: | appliance class I M / type B R / IP 20 |
classification: | medical device risk class IIb according to MDR, active therapeutic medical device and active diagnostic medical device |
usage class: | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to EN 957-6 |
earth leakage current: | ≤ 0.2 mA |
ambient condition: | temperature: +10…+40 °C (-30…+50 °C on request) humidity: 30…70 % (up to 100 % on request) air pressure: 700…1060 hPa; 3,000 m (~10,000 ft) max.altitude without pressurization |
display (resolutions) paramter: | 25.9 cm/10.1“ (1280x800), color touch display parameter: speed, time, elevation, distance, METS, energy consump- tion, altitude, power, pace, heart rate, heart rate variability (digital and scatter diagram), diagram view of heart rate and load parameter parameter export to .pdf and .csv tables to USB |
resolution: | 1 decimal place |
units: | metric / imperial |
heart rate monitoring: | pulse receiver incorporated (analogue 5kHz + digital Bluetooth®), incl. chest belt POLAR H10, automatic control of speed and elevation according to programmed target heart rate („cardio mode“) |
Optionally available at extra charge are special frame colours, other handrail designs, special voltage supply and other options and accessories. Weight and package specifications can deviate according to options, ac- cessories packing and way of transport. E&OE. Subject to alterations without prior notice. Please consider the natural and physical performance limitations of the single phase 230 volt power supply. The single phase 230 volt power supply is sufficient up to normal fitness or therapy applications. For all special high performance applications (speed running, controlled jump-ons, sidesteps, heavy subjects at higher speed, extreme eleva- tions, etc.), we recommend models with a 3-phase, 3x400 volt power supply (for example model h/p/cosmos quasar med 3p, pulsar 3p, venus or saturn).
page: 15 cos01-en-qua
Warning! Installation, commissioning, instruction, maintenance and repair work only to be conducted by h/p/ cosmos trained and authorised personnel. For treadmills with oversized deck (width >65cm), for children, special applications, without sufficient safety space behind the treadmill, for subjects and / or patients with health or other limitations (e.g. visual impairment, etc.), for running at high speed and / or for all individuals, where a fall triggers a dangerous risk of injury or death (e.g. newly operated hip patients, invasive probes, etc.), a fall prevention system is obligatory (e.g. safety arch with chest belt and harness or a weight support system). For more information see the instructions for use. Safety space behind the treadmill: min. L: 2 m (6ft 6.74“) x treadmill width. Children are only allowed to be on the treadmill, if under permanent supervision and secured by a fall prevention system.
specifications quasar® (MCU5)
programs: | 42 programs / profiles
|
PC software (incl.): | h/p/cosmos para control® for display & remote control; including 1 x RS232 interface cable 5m (16 ft 4.85“) |
PC software: (extra charge) | h/p/cosmos para graphics®, para analysis® & para motion®. PC software for control, monitoring, recording & analysis |
accessory (incl.): | instruction for use on USB stick, drinking bottle holder, service box, special oil, PE potential equalization cable, POLAR chest belt |
colour of frame: | pure white RAL 9010 (powder coated) |
handrails: | steel tube handrails Ø 60 mm on both sides, over min. 1/3 of treadmill length with front-handrail crossbar other handrail designs at extra charge |
voltage supply: | 230 Volt AC 1~/N/PE 50/60 Hz 15...16A fuse; dedicated circuit, line and protection; |
size of frame: | L: 230 cm (7ft 6.6“) W: 105 cm (3ft 5.3“) H: 145 cm (4ft 10.7“ ) |
net. weight: | device approx. 309 kg (681 Ibs) |
gross weight: | device approx. 530...580 kg (1166...1276 Ibs) |
treadmill | quasar® |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos30003va16 |
applications: | sports and fitness endurance training, walking and running |
control: | via UserTerminal MCU5 with keyboard and display, integrated interface or via optional remote control |
keyboard: | 6 keys for manual control, easily controllable with medical gloves and under sweaty conditions |
running surface: | L: 170 cm (5ft 6.9“) B: 65 cm (2ft 1.6“) access height: 23 cm (9.06“)
|
speed range: | 0...25.0 km/h (0...6.9 m/s) (0. 15.5 mph) special speed available at extra charge: 0...10 km/h (0…6.2 mph) 0...30 km/h (0…18.6 mph) 0...40 km/h (0…24.8 mph) |
acceleration: | 7 acceleration / deceleration levels between 131 s and 3 s from 0 to max. or from max. to 0; equals 0.053 … 2.315 m/s² programmable via para control® PC software |
elevation: | 0%...+28.0 % (-15.6°. 15.6°) motorized adjustment, (up to -28 % when using reverse belt rotation) |
running direction: | switch for reversing running belt direction at extra charge, max. permissible reverse speed 5 km/h (3.1 mph) if no safety-harness with fall-stop prevention system is used. |
motor systems: | 3.3 kW (4.5 HP) 3-phase AC motor, maintenance free and brushless; 20 years warranty on main drive motor. For high-performance applications, we recommend models with a 3-phase 3x400 volt power supply and a running surface min. 190/65cm. |
power transmission: | frequency inverter, poly-V-belt, very quiet operation |
safety systems: | c, machinery directive 2006/42/EC; EMC directive 2014/30/EU; EN 60335-1; ISO 20957-1; EN 957-6; emergency-off safety stop switch (mushroom push button for drive system power-off); emergency stop switch (safety lanyard with actuator, pull cord and clip) |
degree of protection: | appliance class I M / IP 00 |
classification: | sports and fitness device; not for medical, not for therapeutic applica- tions |
usage class: | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to EN 957-6 |
earth leakage current: | < 1.5 mA |
ambient condition: | temperature: +10…+40 °C (-30…+50 °C on request) humidity: 30…70 % (up to 100 % on request) air pressure: 700…1060 hPa; 3,000 m (~10,000 ft) max.altitude without pressurization |
display (resolutions) paramter: | 6 LCD displays, 4 LEDs for operation modes, 20 LEDs for display of units & profile no, steps, etc. speed (0.1 km/h or m/s or m/min or mph), time (00:00) in hours, minutes & seconds, elevation (0.1 % or degrees) distance (1 m. 999.9 km or miles), METS (1 MET) program step/number, energy (1 kJ/kcal), fitness index (1) power (1 Watt), heart rate (1 bpm / beat per minute) |
resolution: | 1 decimal place |
units: | metric / imperial |
heart rate monitoring: | POLAR chest belt & wireless transmitter, 1 channel receiver automatic control of speed and elevation according to programmed target heart rate („cardio mode“) |
digital interface: | 1 x RS 232 com1 with 9600 bps: incl. PC-protocol, h/p/cosmos coscom® & printer protocol serial. option extra charge: USB-RS232-converter; com2; com3 with 115200 bps; com 4. |
Optionally available at extra charge are special frame colours, other handrail designs, special voltage supply and other options and accessories. Weight and package specifications can deviate according to options, ac- cessories packing and way of transport. E&OE. Subject to alterations without prior notice. Please consider the natural and physical performance limitations of the single phase 230 volt power supply. The single phase 230 volt power supply is sufficient up to normal fitness or therapy applications. For all special high performance applications (speed running, controlled jump-ons, sidesteps, heavy subjects at higher speed, extreme eleva- tions, etc.), we recommend models with a 3-phase, 3x400 volt power supply (for example model h/p/cosmos quasar med 3p, pulsar 3p, venus or saturn).
Warning! Installation, commissioning, instruction, maintenance and repair work only to be conducted by h/p/ cosmos trained and authorised personnel. For treadmills with oversized deck (width >65cm), for children, special applications, without sufficient safety space behind the treadmill, for subjects and / or patients with health or other limitations (e.g. visual impairment, etc.), for running at high speed and / or for all individuals, where a fall triggers a dangerous risk of injury or death (e.g. newly operated hip patients, invasive probes, etc.), a fall prevention system is obligatory (e.g. safety arch with chest belt and harness or a weight support system). For more information see the instructions for use. Safety space behind the treadmill: min. L: 2 m (6ft 6.74“) x treadmill width. Children are only allowed to be on the treadmill, if under permanent supervision and secured by a fall prevention system.
specifications quasar® sport (MCU6)
programs: | 18 programs / profiles (predefined)
import / export of profiles from / to USB stick also for further processing |
PC software (incl.): | h/p/cosmos para control® for display & remote control |
accessory (incl.): | instruction for use on USB stick, drinking bottle holder, service box, special oil, PE potential equalization cable POLAR® H10 heart rate chest belt (Bluetooth® + 5 kHz) |
colour of frame: | pure white RAL 9010 (powder coated) |
handrails: | steel tube handrails Ø 60 mm on both sides, over min. 1/3 of treadmill length with front-handrail crossbar other handrail designs at extra charge |
voltage supply: | 230 Volt AC 1~/N/PE 50/60 Hz 15...16A fuse; dedicated circuit, line and protection; |
size of frame: | L: 230 cm (7ft 6.6“) W: 105 cm (3ft 5.3“) H: 149 cm (4ft 10.7“ ) |
net. weight: | device approx. 315 kg (695 Ibs) |
gross weight: | device approx. 550...600 kg (1210...1320 Ibs) |
treadmill | quasar® sport |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos30003-01va01 |
applications: | sports and fitness endurance training, walking and running |
control: | via UserTerminal MCU6 with keyboard, touch display and Windows® 10 operating system, integrated interface coscom v4 |
keyboard: | 9 keys for manual control, easily controllable with medical gloves and under sweaty conditions |
running surface: | L: 170 cm (5ft 6.9“) B: 65 cm (2ft 1.6“) access height: 23 cm (9.06“)
|
speed range: | 0...25.0 km/h (0...6.9 m/s) (0. 15.5 mph) special speed available at extra charge: 0...10 km/h (0…6.2 mph) 0...30 km/h (0…18.6 mph) 0...40 km/h (0…24.8 mph) |
acceleration: | 7 acceleration / deceleration levels between 131 s and 3 s from 0 to max. or from max. to 0; equals 0.053 … 2.315 m/s² programmable via para control® PC software |
elevation: | 0 %...+28.0 % (-15.6°. 15.6°) motorized adjustment, (up to -28 % when using reverse belt rotation) |
running direction: | switch for reversing running belt direction at extra charge, max. permissible reverse speed 5 km/h (3.1 mph) if no safety-harness with fall-stop prevention system is used. |
motor systems: | 3.3 kW (4.5 HP) 3-phase AC motor, maintenance free and brushless; 20 years warranty on main drive motor. For high-performance applications, we recommend models with a 3-phase 3x400 volt power supply and a running surface min. 190/65cm. |
power transmission: | frequency inverter, poly-V-belt, very quiet operation |
safety systems: | c, machinery directive 2006/42/EC; EMC directive 2014/30/EU; EN 60335-1; ISO 20957-1; EN 957-6; emergency-off safety stop switch (mushroom push button for drive system power-off); emergency stop switch (safety lanyard with actuator, pull cord and clip) |
degree of protection: | appliance class I M / IP 00 |
classification: | sports and fitness device; not for medical, not for therapeutic applica- tions |
usage class: | S, I according to ISO 20957-1 |
accuracy class: | A (high accuracy) according to EN 957-6 |
earth leakage current: | < 1.5 mA |
ambient condition: | temperature: +10…+40 °C (-30…+50 °C on request) humidity: 30…70 % (up to 100 % on request) air pressure: 700…1060 hPa; 3,000 m (~10,000 ft) max.altitude without pressurization |
display (resolutions) paramter: | 25.9 cm/10.1“ (1280x800), color touch display parameter: speed, time, elevation, distance, METS, energy consump- tion, altitude, power, pace, heart rate, heart rate variability (digital and scatter diagram), diagram view of heart rate and load parameter parameter export to .pdf and .csv tables to USB |
resolution: | 1 decimal place |
units: | metric / imperial |
heart rate monitoring: | pulse receiver incorporated (analogue 5kHz + digital Bluetooth®), incl. chest belt POLAR H10, automatic control of speed and elevation according to programmed target heart rate („cardio mode“) |
digital interface: | RFID / NFC® Reader (optional at extra charge) 4x USB 2.0 (1x USB 3.0 internal) Bluetooth®, WiFi / WLAN (optional at extra charge) 1x LAN / RJ45, 1x HDMI connection 1x RS232, 1x connection for safety arch fall stop |
Optionally available at extra charge are special frame colours, other handrail designs, special voltage supply and other options and accessories. Weight and package specifications can deviate according to options, ac- cessories packing and way of transport. E&OE. Subject to alterations without prior notice. Please consider the natural and physical performance limitations of the single phase 230 volt power supply. The single phase 230 volt power supply is sufficient up to normal fitness or therapy applications. For all special high performance applications (speed running, controlled jump-ons, sidesteps, heavy subjects at higher speed, extreme eleva- tions, etc.), we recommend models with a 3-phase, 3x400 volt power supply (for example model h/p/cosmos quasar med 3p, pulsar 3p, venus or saturn).
page: 17 cos01-en-qua
Warning! Installation, commissioning, instruction, maintenance and repair work only to be conducted by h/p/ cosmos trained and authorised personnel. For treadmills with oversized deck (width >65cm), for children, special applications, without sufficient safety space behind the treadmill, for subjects and / or patients with health or other limitations (e.g. visual impairment, etc.), for running at high speed and / or for all individuals, where a fall triggers a dangerous risk of injury or death (e.g. newly operated hip patients, invasive probes, etc.), a fall prevention system is obligatory (e.g. safety arch with chest belt and harness or a weight support system). For more information see the instructions for use. Safety space behind the treadmill: min. L: 2 m (6ft 6.74“) x treadmill width. Children are only allowed to be on the treadmill, if under permanent supervision and secured by a fall prevention system.
specifications airwalk® ap
unweighting device: | airwalk® ap |
manufacturer: | h/p/cosmos sports & medical gmbh / Germany |
order number: | cos30028 |
applications: | body weight support (during treadmill therapy/training) fall protection (during treadmill therapy/training) unweighted and/or secured balance training unweighted and/or secured functional and gait training overspeed/hyperspeed and excess frequency training |
control: | pneumatic valve with rotary knob |
max. body weight: | 250 kg (551 lbs) valid for frame and rope textiles such as vest and shorts excluded |
max. body height: | 200 cm (6,5 ft.) (standard) 225 cm (7,4 ft.) (optionally at extra charge) possible restrictions with treadmill inclination >10% |
body weight support: | dynamic, continuously adjustable at 6 bar: max. 50 kg (110 lbs) at 8 bar: max. 70 kg (150 lbs) at 10 bar: max. 90 kg (200 lbs) optionally at extra charge at 8 bar: max. 120 kg (265 lbs) vertical amplitude approx. 70 cm (2.3 ft.) max. rotation 1 x 360° |
safety systems: | c medical device directive MDD 93/42/EEC + 2007/47/EC; machinery directive 2006/42/EG; ISO 20957-1; EN 14971; EN ISO 13485 |
classification: | medical device risk class I according to MDD, active therapeutic medical device |
usage class: | S, I according to ISO 20957-1 |
ambient conditions: | temperature: +10…+30 °C humidity: 30…75 % air pressure: 700…1060 hPa |
display: | analog manometer on device (standard) |
resolution: | approx. 2.5 kg (5 lbs) |
accessories (incl.) | instructions for use, 1 unweighting vest cos10095-vest-M (size M, thorax circumference 93…105 cm) 1 safety harness cos14903-M (size M, chest circumference 85 … 115 cm) further sizes XXS … XL at extra charge neoprene pants size. S, M, L at extra charge [cos10095-neo] |
compatibility: | h/p/cosmos treadmills pluto®, mercury®, locomotion®, quasar®, pulsar® external devices only with written confirmation by h/p/cosmos treadmill not within scope of delivery |
frame color: | standard: pure white RAL 9010 (powder coated) |
comp. air supply: | coupling plug acc. to ISO4414 |
size of frame: | L: 236…276 cm (7.7 … 9.1 ft.) (depending on treadmill) W: 177 cm (5.8 ft.) H: 273 cm (9.0 ft.) (standard) individual height (e.g. 248 cm or 298 cm) optionally at extra charge |
net weight: | approx. 310 kg (683 lbs) |
gross weight: | see separate position |
optionally available: | compressor 0..8 bar (0…116 psi) (cos103058) attention: 8 bar pressure correspond to max. 70 kg support compressor 0…10 bar (0…145 psi) (cos103016) 10 bar compressor incl. soundproofing hood |
For more information see the instructions for use.
page: 18 cos01-en-qua
Weight and dimensions may differ depending on accessories. Alternative: connection to existing compressed air system with 8…10 bar.
Furthermore optionally available at extra charge: emergency stop for running belt of an h/p/cosmos treadmill, pneumatic spring mode, robowalk expander, max. body weight support 160 / 240 kg (353 / 529 lbs), special frame colours, other options and accessories.
Weight and package specifications can deviate according to options, accessories, packing and way of transport. E&OE. Subject to alteration without notice.
Warning! Installation, commissioning, instruction, maintenance and repair work only to be conducted by h/p/cosmos trained and authorised personnel. Inspect the rope (cos 102317) at least once a month visually for wear or damage. Rope has to be replaced annually or even earlier at first sign of wear or damage. For any application where falling might cause an unacceptable risk (e.g. newly operated hip patients, invasive probes, osteoporosis, etc.) the subject has to be secured by a safety harness [cos14903] additionally.
sports
quasar®
cycling & athletics
saturn® med 300/100r
performance diagnostics
pulsar® med 3p
German Engineering since 1988
inline skating
saturn® med 300/125r
fitness
pluto® / mercury® / quasar® / pulsar®
functional training
pulsar® med 3p + robowalk®
motion analysis
quasar® med
cross country skiing skating / biathlon
saturn® med 450/300rs
expander training
robomove®
wheelchair
saturn® med 300/125r
bike ergometer
torqualizer®
speed training / speedlab®
quasar® 3p
biomechanics gait parameters
optogait
active gait correction
robowalk® expander / mercury® med
senior fitness
mercury®
orthopaedic rehabilitation
mercury® med / arm support / airwalk® ap
cardiac rehabilitation
mercury® med
body weight supported treadmill therapy
© 06/2022 h/p/cosmos [cos01-en-qum-01] Errors and omissions excepted. h/p/cosmos is certified according to EN 13485 for medical treadmills.
All technical data, descriptions, equipment variants and illustrations of devices, options and accessories are non-binding, in particular do not represent warranted characteristics and can deviate from offer and delivery.
airwalk® ap / mercury® med
angiology
mercury® med
gait analysis / biomechanics
gaitway® 3d with force and pressure measurement
cardiovascular stress testing / CPET
mercury® med
locomotion therapy
locomotion® med 150/50
therapeutic bar training
parawalk®
environmental & climate chambers
quasar® med 3p with external UserTerminal
h/p/cosmos dealer contact:
biomechanics
gaitway® 3d
military / army
quasar® special version
manufacturer
speed training
sprint trainer comet®
fire fighter ladder training & fitness
discovery®
h/p/cosmos sports & medical gmbh Am Sportplatz 8
83365 Nussdorf-Traunstein
Germany
phone: +49 86 69 86 42 0
fax: +49 86 69 86 42 49
sales@hpcosmos.com www.hpcosmos.com
skype: @hpcosmos.com (search & select name) youtube: youtube.com/hpcosmos
twitter: twitter.com/hpcosmos facebook: facebook.com/hpcosmos
